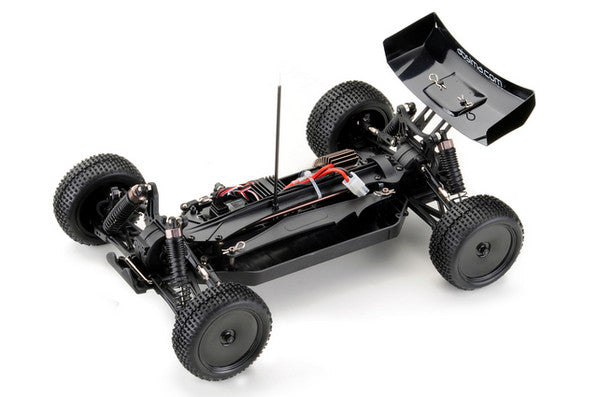

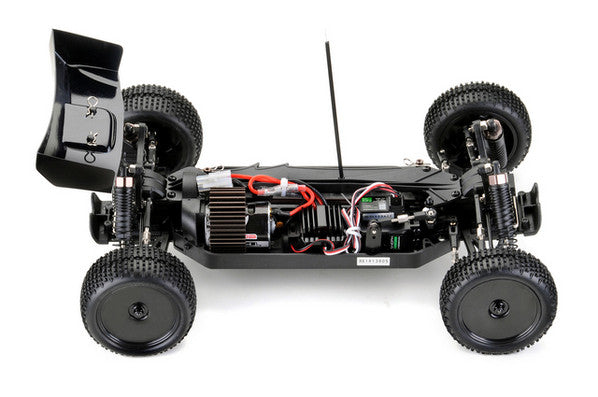

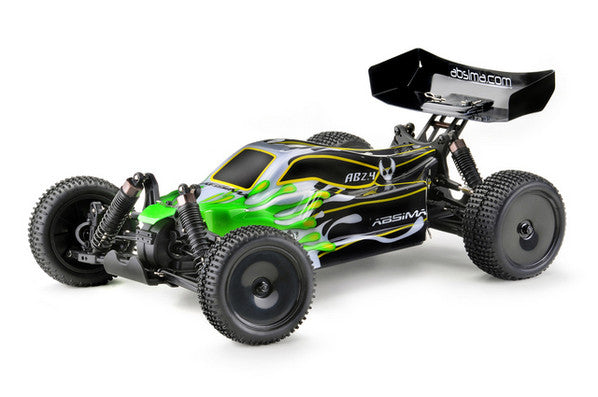

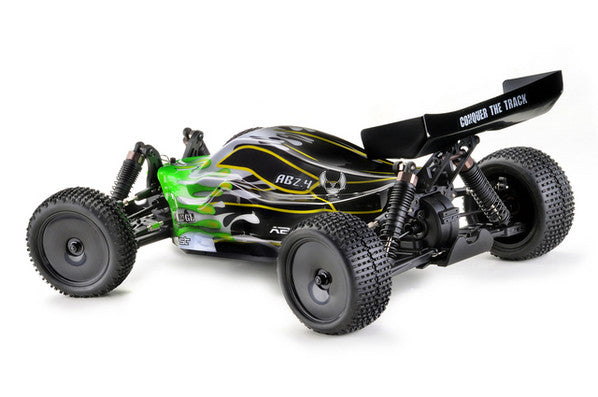

12205UK - 1:10 EP Buggy "AB2.4" 4WD RTR (+ 4200001UK)

1:10 EP Buggy "AB2.4" 4WD RTR (+ 4200001UK)



We proudly present our new Hot Shot Car Line. After 3 successful years we will replace our Hot Shot 1/10th buggy & truggy and expand our range with a Monster Truck! A fresh racing body and a re-engineered chassis layout for a better performance are only two of the new features!

HIGHLIGHTS:

Water-resistant 40A Speed Controler
Powerfull 540 15T Motor with 32.000RPM
2.4GHz A.F.H.D.S. Radio System
Including a NiMH battery and plug charger

GENERAL CHASSIS FEATURES:

4WD
Ball bearing transmission
Adjustable oil shocks
Gear differential front/rear
Aluminum motor mount
Complete covered transmission
New chassis layout for better performance
Adjustable turnbuckles
Adjustable wishbones
Aluminum heat sink
Aero disc racing wheels
Full printed body
Sticker sheet for a unique design
A lot tune-up parts available!

TECHNICAL SPECIFICATION:

Measure (L/W/H): 380x255x155 mm
Weight: 1410g
Wheelbase: 270 mm
Chassis clearance: 35 mm
Tire width: 33 mm front / 42 mm rear
Tire Ø ± 88 mm
Shock spring force: medium / Length: 85mm f/r
Differential oil viscosity: 3.000 front / 1.000 rear
Shock oil viscosity: 400 f/r
Motor transmission: Pinion 23T / Gear 64T
Pinion module: 0.6

MORE FEATURES:

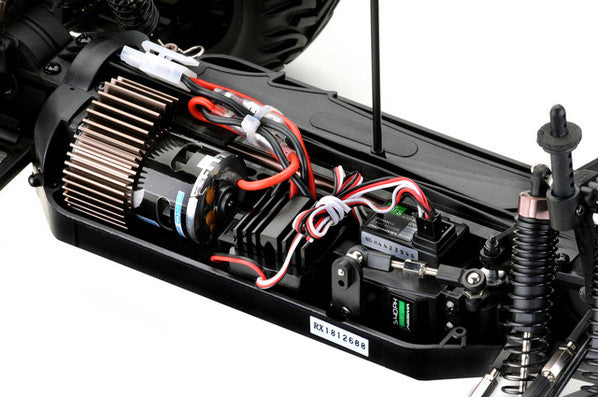

Speed Controller (2100002): NiMH (7.2V) & LiPo (7.4V/2S) suitable / Amps: 40A / BEC 5V/2A / Drive function: front/reverse/brake / Plug system: Tamiya
Servo (2030003): 4kg steering force / 25T outdrive
Motor (1230360): 15T / 32.000RPM / 16A / Size: 540
Radio (2000001): 2-channel radio / 3-channel receiver / reverse / dual rate / trimming



UK VERSION (3 pin plug charger)

SCOPE OF DELIVERY:

Buggy "AB2.4" RTR - brushed version
2.4GHz Radio System
Manual
Sticker Sheet
NiMH Battery
UK Plug Charger

REQUIRED ACCESSORIES:

Everything included

Part No.: 12205UK
