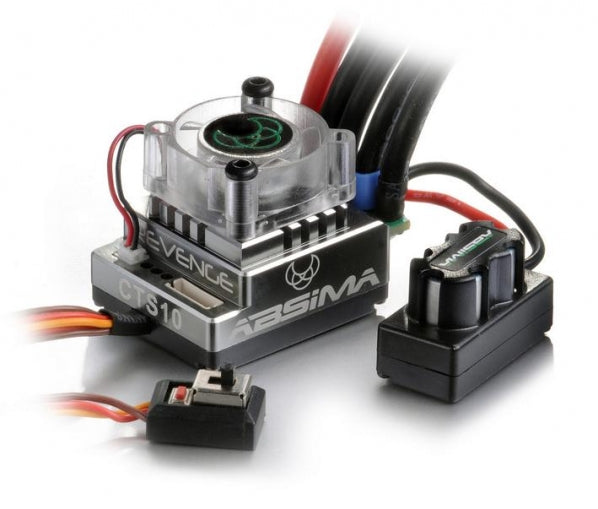

2110010 Brushless Speedo 1:10 "Revenge CTS 10" 160A

1:10 brushless Speedo from the Absima "REVENGE CTS" series.

High performance speed controller at its best!

The new "Revenge CTS" 1:10 scale speedo is based on the latest technology and is designed for extreme performance. Anyway, the technology convinces by a very sensitive response relationship. With the separately sold program box (Item No. 2110035), the speedo can be adapted for any claims of competitive driver, but also for any amateur pilots.



Tec Spec:



• Description: CTS10
• Nature: Competition ESC 1:10
• Sensor type: sensor / sensorless / 2/4 Pole
• Cont. amps: 160 A
• Peak amps: 760 A
• Resistance: 0.0002 ohm
• Battery type: 2-3S LiPo/LiFe (7.4V-11.1V); 4-9 cells NiMh/NiCd
• Up to KV: 9500KV
• Max 2S @ T: On road 3.5T< / Off road 5.5T<
• Max 3S @ T: On road 5.5T< / Off road 8.5T<
• BEC: 6V / 3A
• Function: Forward/brake/reverse; Forward/brake; Forward/reverse (Crawler mode)
• Size (incl. cooler): L: 43mm / W: 30,5mm / H: 31mm
• Size (w/o cooler): L: 43mm / W: 30,5mm / H: 19,5mm
• Weight: 46gr w/o cooler / 58,6gr with cooler
• Application: 1:12 On-road / 1:10 On-road; Off-road; Crawler
• Scope of delivery: Speed controler incl. switch and capacitor; Cooling fan; Motor wires (soldered); Manual (DE/EN/FR)

Part No. 2110010
