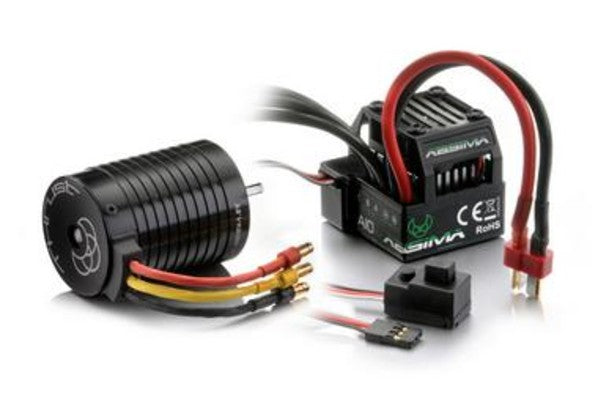

2120001 Brushless Combo Set "Thrust BL" 1:10

The Brushless Combo Set "Thrust BL" 1:10 is primarily aimed for the owners of 1:10 Ready Set vehicles or KIT vehicles that want to make simple adjustments to increase their racer performance. The set includes the brushless high-performance motor with aluminum housing and the matching speed controller. The system is designed without sensor cable, allowing a particularly easy handling.

Complete sensorless brushless set - ready to use.
Including gold-bonded plug system and t-plug batterie connection.
Setup button for an easy calibration.



Features Brushless ESC :



• Waterproof 45A speedcontroler incl. fan
• NiMH & LiPo auto detect
• LiPo cutoff: 3.0V/cell
• Overheat protection: 95°
• Peak amps: 80A
• BEC: 6V / 2A
• Battery type V: 6.0 – 7.4V
• Brake power:  50%
• Neutral brake:  0%
• Motor timing: 8 deg.
• Function: forward/brake/reverse
• Size: (L/W/H) : 37 x 40 x 36 mm
• Weight incl. cable : 90g



Features Brushless Motor :



• 3421 KV / 10 Turn
• 25.500 RPM/min @ 7.4 Volt
• 4 Pole
• Battery type: 6.0 – 7.4V
• Size: 540
• Length: : 50.0 mm
• Ø w/o fins: 35.2 mm
• Shaft length : 15,68 mm
• Ø shaft : 3,17 mm
• Weight: : 170 g

Part No. 2120001
