AB-12003 Absima CR2.4 Crawler RTR

AB-12003

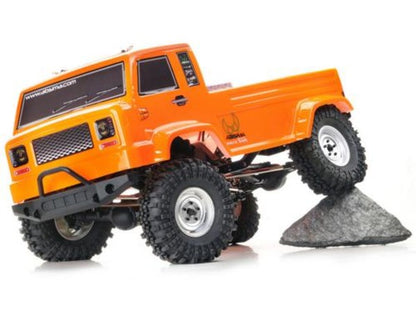

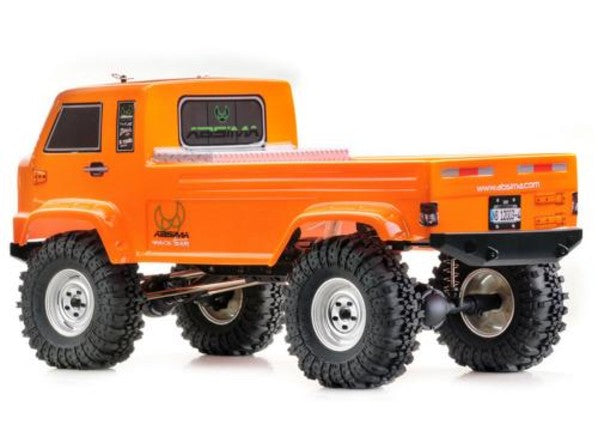

Absima CR2.4 Crawler RTR

Highlights:

Water-resistant 40A brushed speed controler with crawler mode
4-link suspension
UJ telescopic drive system
Axle mounted digital steering servo

General Chassis Features:

4-link suspension system with aluminum anodized suspension links allows smooth crawling
Telescopic UJ drive system for maximum durability
Axle mounted digital steering servo
Water-resistant 40A speed controller
Full ball bearings
3-gear center mounted transmission gear box
Low center gravity motor mount

Technical Specifications:

Measure (L/W/H): 500x225x240 mm
Weight: 1560g
Wheelbase: 280 mm
Chassis clearance: Frame 79 mm / Axle 38mm
Tire width: 40 mm front/rear
Tire Ø ± 118 mm
Shock spring force: soft / Length: 78mm f/r
Shock Oil: 100 f/r
Motor transmission - Pinion 22T / Gear 60T
Pinion module: 48dp

More Features:

Speed Controller: NiMH (7.2V) & LiPo (7.4V/2S) suitable / Amps: 40A / BEC 5V/2A / Drive function: forward/reverse (motor brake) / Plug system: Tamiya
Servo: 3kg steering force / Digital / 25T outdrive
Motor : 22T / Size: 390
Radio : 2-channel radio / 3-channel receiver / reverse / dual rate / trimming

Required:

Battery - Racing Pack NiMH or 2s LiPo
Suitable Charger
