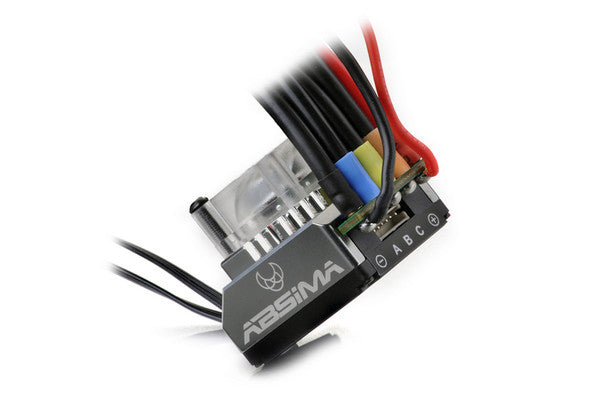

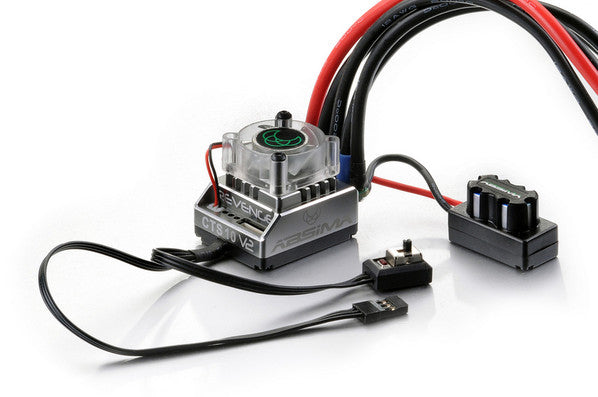

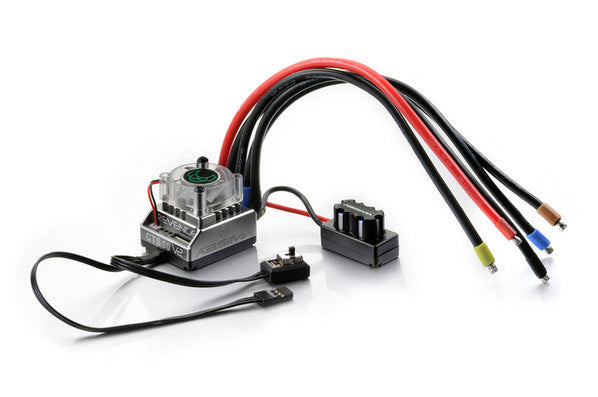

AB2110011 - Brushless ESC (1:10) "Revenge CTS 10 V2" (160A)

Brushless ESC (1:10) "Revenge CTS 10 V2" (160A)

NEW FEATURES:

√ New software update
√ New aluminum top case for improved cooling

The new "Revenge CTS" 1:10 scale speedo is based on the latest technology and is designed for extreme performance.
Anyway, the technology convinces by a very sensitive response relationship. With the optional program box (Item No. 2110035), the speedo can be adapted for any claims of competitive drivers, but also for any amateur pilots.

Fully programmable with our optional program box (Item no: 2110035)

Technical specification:

● Type: Competition speed controller
● Sensor type: sensor / sensorless / 2/4 Pole
● Deans (T-plug) high current connectors
● Cont. amps: 160A
● Peak amps: 760A
● Resistance: 0.0002 ohm
● Battery type: 2-3S LiPo/LiFe (7.4V-11.1V);  4-9 cells NiMH/NiCd
● Up to KV: 9500KV
● Max 2S @ T: On-road 3.5T< / Off-road 5.5T<
● Max 3S @ T: On-road 5.5T< / Off-road 8.5T<
● BEC: 6V / 3A
● Function: forward/brake/reverse; forward/brake; forward/reverse (Crawler Mode)
● Size (w/o cooler): L: 43mm / W: 30,5mm / H: 19,5mm
● Size (with cooler): L: 43mm / W: 30,5mm / H: 31,0mm
● Weight (w/o cooler): 46g; (with cooler): 59g
● Application: 1:12 On-road / 1:10 On-oad, Off-road, Crawler
Scope of delivery:

● Speed controller incl. switch & capacitor
● Pre-mounted cooling fan
● Soldered connected motor wires
● Manual (DE/ENG/FR)


Part No.: AB2110011
