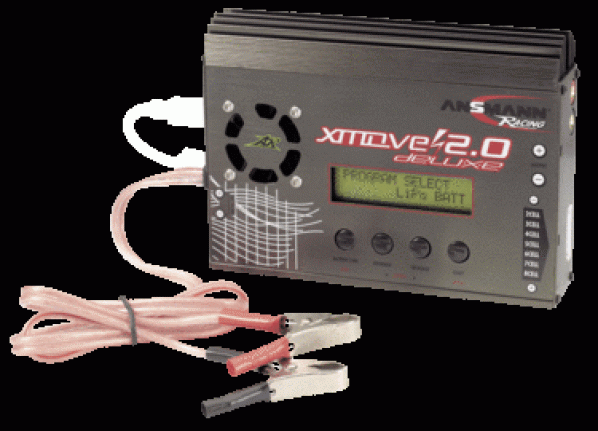

AN-153000040 - xMove 2.0 Deluxe

Seasonal saver
Great charger for all batteries ..

Optimised operating software: The xMove 2.0 Deluxe has an “AUTO” feature that automatically controls the supply current when charging or discharging rechargeable batteries. For lithium batteries in particular, this prevents overcharging, which can damage batteries. High voltage and high current circuit: The xMove 2.0 Deluxe is designed for a maximum
output of 150W. This allows the device to charge or discharge up to 27 NiCd or NiMH cells and eight series lithium batteries with a maximum current of 7.0A. This high performance is made possible by the special cooling system that can easily handle the current required for the operating program.
Integrated voltage regulator for lithium batteries: The xMove 2.0 Deluxe controls the voltage for each individual cell in a battery pack. This makes having a separate charger for cell voltage control in lithium batteries (Li-Ion, LiPo and Li-Fe) unnecessary. Regulating individual cells during discharging: The xMove 2.0 Deluxe can monitor and control the voltage of each of the individual cells in a lithium battery pack while discharging.
As soon as the voltage in any of the cells exhibits unusual fluctuation the charging process is interrupted and an error message appears.
Charge or discharge different types of lithium battery packs: The xMove 2.0 Deluxe can charge/discharge three types of lithium battery packs: Li-Lo, LiPo and Li-Fe battery packs. These rechargeable battery packs differ in terms of their chemical composition. You can select one of these three types for each charge/discharge. FAST mode and STORAGE mode for lithium batteries: You can charge lithium batteries for specific uses. FAST charging mode reduces charging time, STORAGE mode regulates the target voltage of the battery, enabling you to store the battery for longer periods. Maximum safety: Delta peak detection: Automatic charge interruption according to the delta peak voltage detection principle (NiCd and NiMH batteries).

Input voltage: 11-18.0V DC
Performance: Max. 150W for charging
Charging current: 0.1 to 7.0A
Discharging current: 0.2 to 5.0A
Consumption for balancing LiPo rechargeable batteries: 300mAh/cell
Battery types:
                          1-27 NiCd/NiMH cells
                          1-8 Li-Ion/Li-Po/Li-Fe cells
Lead acid battery voltage: 2 to 26V
Weight: 700g
Dimensions: 160 x 120 x 40mm

Part No. 153000040
