ARA106040t1 Kraton 6S 4WD BLX 1/8 RTR Blue

ARA106040t1 or 2

Introduction

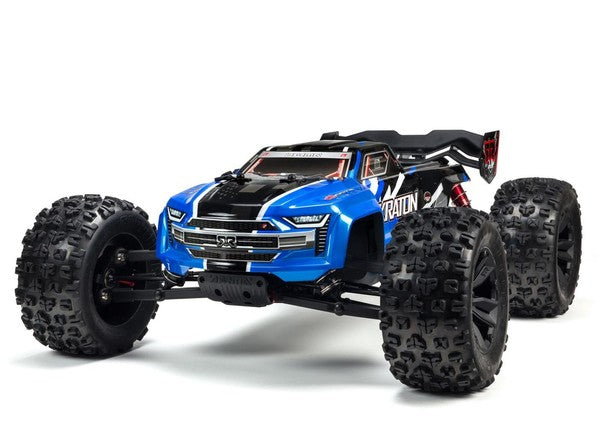

The ARRMA® KRATON™ 6S BLX 4WD Speed Monster Truck reaches a mindblowing 60+ mph, driven by its 6S capable brushless power system and durable design. Now comes complete with the 2.4GHz Spektrum™ STX2® radio system, it's fully equipped for fast, all-terrain bashing!

Features

* Speed achievable in optimum conditions on 6S LiPo with optional pinion gear

Ready-to-run
Extremely durable
Fast, 60+ mph speed potential *
150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
Anodised aluminium chassis
Centre body support
Aluminum center brace
Strong composite chassis side pods
Heavy-duty drivetrain
All-metal diff outdrives and gearbox internals
Durable steel driveshafts
Easy-access sliding motor mount
7-Bolt center diff removal
Never-pop ball ends
Never loose red aluminium servo saver
Oil-filled adjustable shocks
Black anodised aluminium front and rear shock towers

** For details on waterproof standards, please refer to the product instruction manuals

Body print style in red/black or blue/black
Ultra-detailed decals
High downforce wing
Multi-split spoke wheels and DBoots® COPPERHEAD 2 tires
Super-durable wheel hubs
Hub nut O-rings
Spektrum™ 2.4GHz STX2® Radio with SRX200 Receiver
BLX4074 2050Kv brushless motor
BLX185 waterproof 4S/6S ESC (fitted with IC5™ connector and EC5™ compatible) **
ADS-15M waterproof 15kg-cm metal-geared servo (195 oz-in @ 6V) **
2-year limited warranty (see website for details).
Needed to Complete(2) 2S or 3S 35C+ 5000mAh LiPo batteries with IC5/EC5 connector or
(1) 4S or 6S 35C+ 5000mAh LiPo battery and harness with IC5/EC5 connectors
Suitable LiPo balancing charger
(4) AA batteries (for transmitter)
LiPo charging bag or case (recommended)What's in the Box?(1) ARRMA KRATON 6S BLX 4WD Speed Monster Truck RTR
(1) Spektrum 2.4GHz STX2 Radio Transmitter

Overview

To put so much incredible speed into the hands of intermediate-level bashers, ARRMA® has outfitted the new KRATON™ Speed Monster Truck with a potent 2050Kv brushless motor. It's paired with the BLX185 ESC, featuring 1C5™ connectors and compatible with standard EC5™ connectors. Bashing is a "go" even through mud and snow, thanks to waterproof electronics. Add your favorite 4S or 6S LiPo battery and watch this monster truck smash your speed expectations, especially when running with the optional recommended pinion gear.

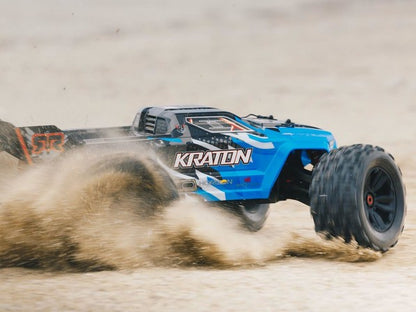

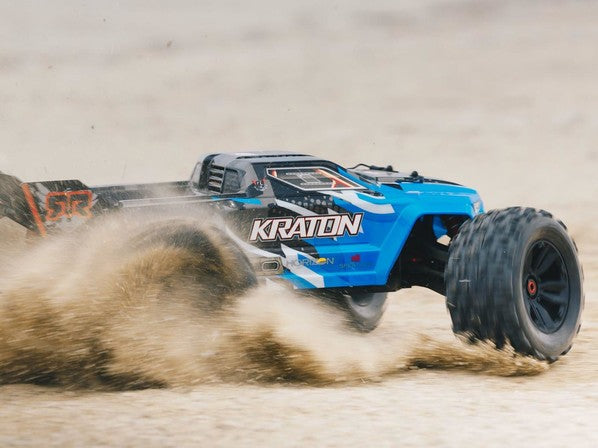

With adjustable oil-filled shocks soaking up the bumps, the KRATON™ 6S BLX 4WD Speed Monster Truck blasts over dirt, asphalt, grass - all terrain and all conditions. The shocks are mounted on black-anodised aluminium towers. New, multi-split spoke wheels come outfitted with super-aggressive, multi-surface DBoots® COPPERHEAD 2 tires. A high downforce wing helps keep the vehicle grounded. Everything contributes to confident control and responsive handling at thrilling high speeds.

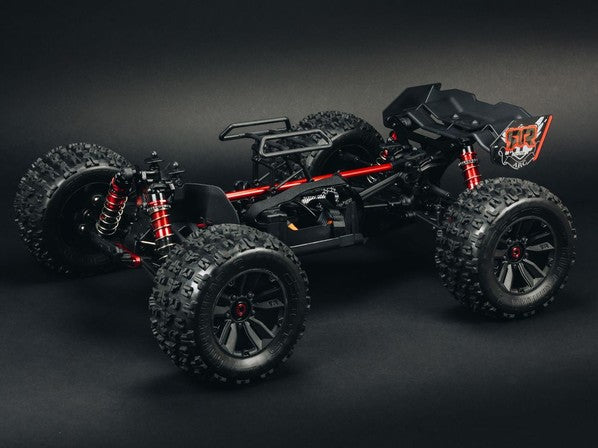

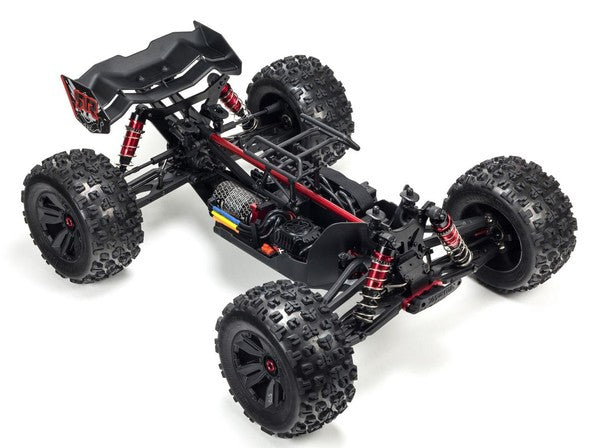

For the durability needed to support intense brushless performance, ARRMA® uses a strong anodised aluminium chassis as the foundation. A center body support and new aluminium center brace plus composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals plus durable steel driveshafts provide a reliable, heavy-duty drivetrain that holds up to extreme, high-speed bashing. A new "never loose" aluminium steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

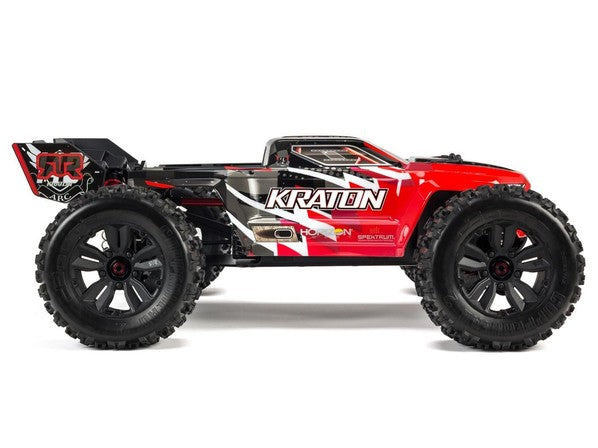

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount allows quick, hassle-free motor access. The center diff is easy to reach and can be removed by taking out just seven bolts. Topping it all off is a monster truck body with streamlined good looks, featuring a red/black or blue/black trim and ultra-detailed decals.

The ready-to-run KRATON™ 6S BLX 4WD Speed Monster Truck includes the new Spektrum™ 2.4GHz STX2® transmitter and comes with its SRX200 receiver and ADS-15M metal-geared servo already factory-installed. The only required items are a 4S or 6S LiPo battery, compatible charger, safe charging bag, and 4 x AA transmitter batteries. ARRMA® recommends the Dynamite® Powerstage™ Stage 6 bundle (DYN1540), which includes a Passport™ Ultra P2 100W AC/DC Multi-Charger and two Reaction HD 5000mAh 3S hardcase LiPo batteries with EC5™ connectors. [AGGRESSIVELY STYLED]AGGRESSIVELY STYLED

New body, styling, and print scheme in red/black or blue/black with ultra-detailed decals and a high downforce wing with strengthened wing mounts[TOWER TO TOWER BRACE]TOWER TO TOWER BRACE

The aluminium center brace maximizes chassis durability

 [TACKLE TERRAIN]TACKLE TERRAIN

New DBoots® Copperhead 2 tires with more durable multi-split spoke wheels[SLIP AND SLIDE]SLIP AND SLIDE

Sliding motor mount for easy meshing and removal, and easy-access 7-bolt center diff

 [TIGHT & TRUE]TIGHT & TRUE

New servo saver design that will never loosen, for maximum servo protection.[Never-Pop Steering Ball Links]CAPTIVATING

Captured steering ball ends that will never pop off

 [Never-Loose Hub Nuts]SIGNED, SEALED, & DELIVERED

New, updated hubs and hub nut o-rings that will never come loose[ANODIZED ALUMINIUM SHOCKS]ANODIZED ALUMINUM SHOCKS

Anodised aluminium shock absorbers feature adjustable collars and shock cap protectors

 [BLX185 ESC]BLX185 ESC

Waterproof and dustproof design *
150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
Fitted with reliable IC5™ connectors (EC5™ compatible)
Integrated fan for reduced heat during extreme running
High quality 10awg wires
Low voltage cut off and thermal overload protection
User programmable punch and brake settings
Capable of 60+ mph (97+ km/h) speeds **
* For details on waterproof standards, please refer to the product instruction manuals.
** Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.[BLX4074 2050Kv Brushless Motor]BLX4074 2050Kv BRUSHLESS MOTOR

Beautifully etched aluminium can
4-pole construction for smooth and consistent power
Gold bullet connectors for reliable and efficient connection
Finned motor can for increased heat dissipation
Super strong 5mm shaft
Capable of 60+ mph (97+ km/h) speeds *
* Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.

 [SPEKTRUM STX2 RADIO SYSTEM]SPEKTRUM STX2 RADIO SYSTEM

Complete 2.4GHz radio system including a 2Ch waterproof receiver *
Built-in 3-position throttle limiter
Steering & throttle rate & trim adjustments with throttle and steering reversing
FHSS 2.4GHz protocol** offers extended range and interference free performance
* For details on waterproof standards, please refer to the product instruction manuals.
** Not compatible with DSM, DSM2 or DSMR 2.4GHz protocol[ADS-15M SERVO]ADS-15M SERVO

Strong metal gears used throughout
Waterproof and dustproof case *
25 tooth output spline
Torque: 14kg-cm @6V
Speed: 0.16sec/60degree @6V
Dimensions: 40x38x20mm (Industry standard size)
* For details on waterproof standards, please refer to the product instruction manuals.

Download the fact sheet




Spec Data
Scale 1/8th
Height
195mm
Length
594mm
Width
461mm
