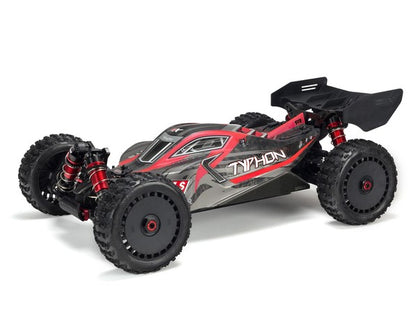

ARA8606V5 Typhon 6S 4WD BLX 1/8 RTR

Typhon 6S 4WD BLX 1/8 RTR

Probably the fastest 6s buggy amazing speed with great handling

Product DetailsDesigned fast and designed tough, the ARRMA TYPHON 6S BLX 4WD RTR Speed Buggy is now equipped to deliver even bigger and better 1/8 scale bashing thrills - with a Spektrum SLT3 radio, dual protocol receiver, Smart ESC, stronger servo and more.Key Features

Updated with Spektrum components and Smart compatible
70+ MPH (113km/h) speeds achievable in optimum conditions using a 6S LiPo battery and optional pinion gear, not included
EXB compatible front brace
Large volume waterproof receiver box
Ready-to-run - just install a charged 4 cell or 6 cell LiPo battery of your choiceIn The BoxARRMA TYPHON 6S BLX 1/8 Speed Buggy 4WD RTR
Spektrum Firma 150A Smart 4S/6S ESC (installed)
Spektrum Firma 4074 2050Kv Brushless Motor with ARRMA Heatsink (installed)
Spektrum S652 Metal-Geared Digital Servo (installed)
Spektrum SR315 3-Channel Dual Protocol Receiver (installed)
Spektrum SLT3 2.4GHz 3-Channel Radio
Product ManualNeeded to Complete4S or 6S LiPo Battery
LiPo Compatible Charger
LiPo Charging Bag
(4) AA Batteries

Introduction

Experience a thrilling new level of bashing performance with the 1/8 scale, ready-to-run ARRMA® TYPHON™ 6S BLX 4WD Speed Buggy. Designed fast, designed tough, and now outfitted with a versatile Spektrum™ 3-channel radio system and Firma™ brushless electronics, it's all set for fast action on all terrain, in all conditions.

Features

Ready-to-run
Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
Spektrum™ SR315 Dual Protocol 3-Channel Receiver
Spektrum™ S652 Digital Servo
Spektrum™ Firma™ 150A Smart ESC
Spektrum™ Firma™ 4074 2050Kv Brushless Motor
EXB compatible front brace
Stronger chassis design
Large volume waterproof* receiver box
+1mm wheel hexes
Anodised aluminium chassis
Strong composite chassis side pods
Strong front and rear composite chassis brace
High-speed low downforce wing and strong mounts
Oil-filled adjustable shocks
Aluminium shock caps and protectors

Black-anodized aluminium front and rear shock towers
Durable steel driveshafts throughout
Heavy-duty drivetrain
All-metal diff outdrives and gearbox internals
Never-loose red aluminium servo saver
Never-pop ball ends
4-Bolt centre diff removal
Easy-access sliding motor mount for quick motor removal
Super-durable wheel hubs for increased strength
Low drag wheels
Multi-terrain dBoots® KATAR™ tires
Forged composite style matte paint scheme
IC5® connectors (EC5™ compatible)
2-year limited warranty (see manual for details)*For details on waterproof standards, please refer to the product instruction manual

Overview

ARRMA® engineers have updated the TYPHON™ 6S BLX 4WD Speed Buggy with a brushless power system featuring the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminium and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo.

The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

The TYPHON™ 6S BLX 4WD Speed Buggy blasts over dirt, asphalt and grass, with adjustable oil-filled shocks soaking up the bumps. The shocks are mounted on black-anodized aluminium towers and include aluminium shock caps and protectors to maintain their super-smooth damping.

For the durability needed to support intense brushless performance, ARRMA® uses a strengthened, anodized aluminium chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods add more toughness. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, all contribute to a reliable, heavy-duty drivetrain that holds up to extreme bashing. A "never loose" aluminium steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

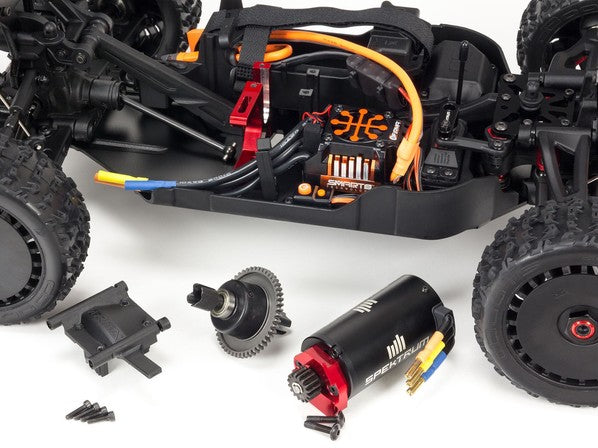

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount gives you quick, hassle-free access to the motor. The center diff is easy to reach and can be removed by taking out just four bolts.

The low-drag buggy wheels, now with +1mm hexes, arrive outfitted with super-aggressive, multi-surface dBoots® KATAR™ tires. A low-drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds. Topping it all off is a sleek buggy body with streamlined good looks, featuring a matte black and red paint scheme with forged composite detail.[UPDATED CHASSIS DESIGN]UPDATED CHASSIS DESIGN

Wider rear section and 3D form introduced in key areas to greatly improve strength.

 [SAFE-D FIRST]SAFE-D FIRST

Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.

 [FRONT PIVOT BALL SUSPENSION]FRONT PIVOT BALL SUSPENSION

For precise handling at top speeds

 [QUICK MAINTENANCE]QUICK MAINTENANCE

4 bolt center diff removal for easy access

 [SPEKTRUM^®SMART TECHNOLOGY INCLUDED]SPEKTRUM® SMART TECHNOLOGY INCLUDED

FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor

 [GO LARGE]GO LARGE

Large volume waterproof receiver box

 [RUBBER SHIELDED BEARINGS]RUBBER SHIELDED BEARINGS

Longer life, less maintenance

 [OPTIONAL SPEED PINION INCLUDED]OPTIONAL SPEED PINION INCLUDED

Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.

 [FIRMA 150A SMART Brushless ESC]FIRMA™ 150A SMART Brushless ESC

Waterproof* and dustproof design
150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
Spektrum® SMART Technology
Fitted with reliable IC5® connectors (EC5™ compatible)
Integrated fan for reduced heat during extreme running
High quality 10awg wires
Low voltage cut off and thermal overload protection
User programmable punch, brake, BEC, reverse speed and motor timing settings*For details on waterproof standards, please refer to the product instruction manual [FIRMA 4074 2050Kv Brushless Motor]FIRMA™ 4074 2050Kv Brushless Motor

2050Kv 4074 size 6S brushless motor
Beautifully etched aluminium can
4-pole construction for smooth and consistent power
4mm gold bullet connectors for reliable and efficient connection
Black anodized aluminium motor can for increased heat dissipation
Super strong 5mm shaft
Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

 [SPEKTRUM SLT3 RADIO]SPEKTRUM® SLT3® RADIO

Superb SLT response rate
50% and 75% throttle limited switch - great for beginners
Steering & throttle rate & trim adjustments with throttle and steering reversing
Foam steering wheel grip
Compatible with Tactic Receivers

 [SPEKTRUM SR315 RECEIVER]SPEKTRUM® SR315 RECEIVER

Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters
Fast reponse rate and outstanding range
No tool binding and protocol switching
SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
3-Channels

 [SPEKTRUM SPMS652 DIGITAL SERVO]SPEKTRUM® SPMS652 DIGITAL SERVO

All Steel Gears
Waterproof*
19.08kg-cm/265oz-in Torque @7.4V
32% More Torque & 5% Faster than ADS-15M Servo*For details on waterproof standards, please refer to the product instruction manual


Spec Data
Scale 1/8
Motor type Brushless - Sensorless
Weight
3.42Kg
Height
190mm
Length
510mm
Width
310mm
