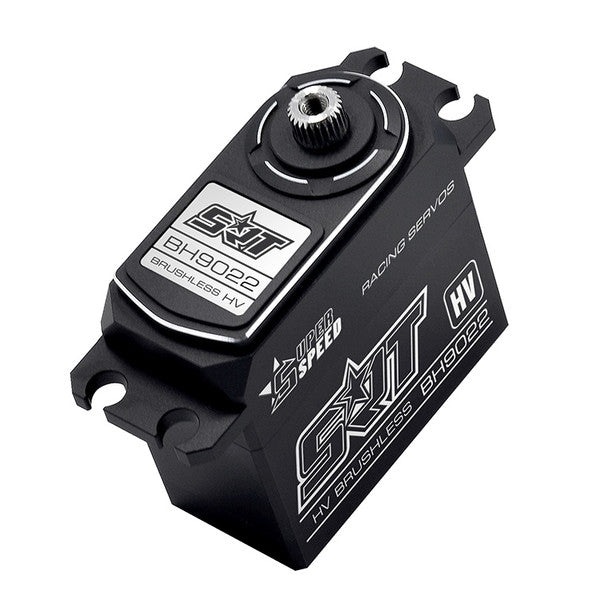

BH9022 - HV Brushless Servo - 18kg/0.08 Sec @6v - Full Alloy Case

SRT BH9022 HV Brushless Servo - 18kg/0.08 Sec @6v - Full Alloy Case


New to model hobby!

The latest generation of high quality SRT servos provides you with the ultimate performance and reliability possible for many different applications.

Ideal for 1/10 On/Off Road and 1/8 off road scale applications
Superior Holding Speed
incredible efficiency and low power consumption
Standard dimension make it perfect for vehicles that can benefit from a high quality servo
CNC Machined aluminum case for exceptional cooling
NMB dual main bearings
25T output shaft
HD 4096 Resolution
2 μsec Dead Band
1-Year Limited Warranty

Product Specifications

Weight: 80.0g (2.82 oz)
Potentiometer drive: direct drive
Operating voltage: dc6.0-8.4v
Control system: pulse width control
Gear Type: Metal
Bearing: Dual
Operating speed (6.0v): 0.085 sec/60 degrees at no load
Operating speed (7.4v): 0.065 sec/60 degrees at no load
Operating speed (8.4v): 0.060 sec/60 degrees at no load
Stall torque (6.0v): 18.0kg.cm (249.9 oz/in)
Stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
Stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
Type: Digital
Motor Type: Brushless
Gear Material: Titanium & Alu
Working frequency: 1520μs / 330hz
Operating temperature range: -10 to + 60 degree
Dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
Connector wire length: JR 250 mm

Part No.: BH9022
