Introduction

Experienced bashers can shred big-time with the 1/5 scale ARRMA® KRATON™ 8S BLX 4WD Speed Monster Truck. DESIGNED FAST and DESIGNED TOUGH, it's ready-to-run out of the box and comes with nearly everything you need - just add your preferred batteries and charger. The supplied Spektrum™ DX2E Active® transmitter and SR6100AT AVC® (Active Vehicle Control®) receiver take full advantage of the innovative telemetry technology found in the included Spektrum™ Smart Firma™ brushless motor and ESC. Download the free Spektrum™ Dashboard App to your mobile device to view motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time. Dial-in extra stability with the radio's AVC® system to carve corners and nail jumps without letting up on the throttle. The KRATON 8S BLX 4WD is capable of 55+ MPH speeds in optimum driving conditions using an 8S LiPo (2 x 4S LiPo batteries) and optional pinion gear (available separately). The speed potential is amazing - and you'll be able to use it all.

Features

Laser-etched aluminium anodised chassis plate
Strong composite chassis side pods
Triangular structured center brace system for maximum durability
Oil-filled adjustable shocks with massive 20mm bore
Ultra-thick composite front and rear shock towers
Easy-access 3-bolt sliding motor mount for quick motor removal
Aluminum motor mount and hubs
Heavy-duty drivetrain
Durable steel driveshafts throughout
Easy-access front and rear diff module design
All-metal diff outdrives and gearbox internals

Easy-access waterproof electronics module
Heavy-duty dual spring servo saver
Multi-split spoke wheels
Durable wheel hubs for increased strength
Multi-terrain dBoots® COPPERHEAD™ 2 SB tyres
Ultra-tough truck body and decals
High downforce wing
Integrated internal body protection tower
Spektrum™ DX2E Active® 2.4GHz Radio with SR6100AT AVC® Receiver
Spektrum™ Firma™ 160A Smart ESC
Spektrum™ Firma™ 1250Kv Brushless Motor
Spektrum™ S905 Metal-Geared Digital Servo
2-year limited warranty

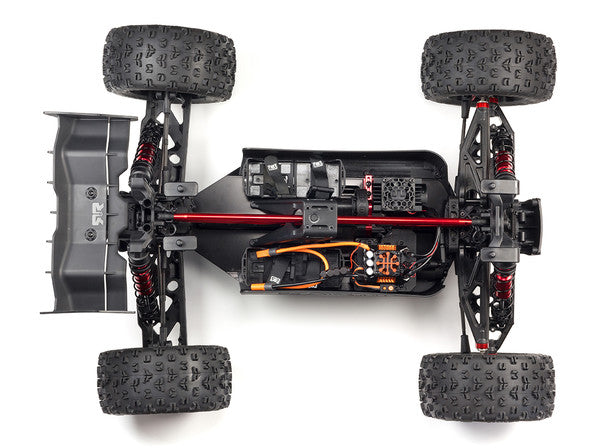

Overview

Bigger than big and engineered for brute power and toughness, the ARRMA® 1/5 scale KRATON™ 8S BLX 4WD Speed Monster Truck takes your bashing ability to the next level. Its metal-reinforced design lets you blast up, over, and through bruising obstacles without worry. Metal shafts, turnbuckles and outdrives, plus all-metal internal gears, give the drivetrain and suspension system unstoppable strength. The anodised aluminium chassis plate features composite side pods and a triangular center brace for maximum durability. Ultra-thick composite front and rear shock towers hold massive 20mm bore, oil-filled adjustable shocks that soak-up bumps and jolts.

The power that sends the KRATON™ 8S BLX 4WD Speed Monster Truck charging easily over challenging terrain comes from its 1250Kv Spektrum™ Firma™ brushless motor. The torque and acceleration is incredible. For quick access, the motor is mounted with three bolts onto a sliding aluminium mount.

The waterproof electronics module - also designed for easy access - houses and protects more innovative Spektrum™ equipment. ARRMA® has equipped the KRATON™ 8S BLX 4WD Speed Monster Truck with a state-of-the-art Firma™ Smart 160A ESC and SR6100AT AVC® (Active Vehicle Control®) receiver. Innovative connectivity enables all the Smart electronics to send valuable telemetry data to the included Spektrum™ DX2E Active® transmitter without requiring multiple wires, sensors, modules and links. Just download the free Spektrum™ Dashboard App to your mobile device, which connects wirelessly via Bluetooth to the DX2E transmitter. Then you can view motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time.

The ultra-tough KRATON™ truck body with high-downforce wing is available factory trimmed, painted and decaled in two striking color schemes. A center protection tower on the chassis interfaces with the roll cage for increased body durability. It all rides on multi-split spoke wheels with strong, durable aluminium wheel hubs, and multi-terrain dBoots® COPPERHEAD™ 2 SB tyres with a tread pattern designed for extreme, all-terrain action.Needed to Complete(2) 4S LiPo Batteries (SPMX50004S50H5 Spektrum™ Smart 14.8V 5000mAh 4S 50C LiPo Hardcase Recommended)
Compatible Charger (SPMXC1010 Spektrum™ Smart S2100 AC
Charger 2X 100W Recommended)
LiPo Charging Bag
(4) AA BatteriesWhat's in the Box?(1) KRATON™ 8S BLX SPEED Monster Truck
(1) Spektrum™ DX2E Active® 2.4GHz Radio with SR6100AT AVC® Receiver
(1) Spektrum™ Firma™ 160A Smart ESC
(1) Spektrum™ Firma™ 1250Kv Brushless Motor
(1) Spektrum™ S905 Metal-Geared Digital Servo [40kg-cm; 556 oz-in @ 7.4V]
(1) Product Manual
Recommended Completion ItemsImage Item Id Name SSP
  O-SPMXC1010I Spektrum Smart S2100 AC Charger, 2x100W £209.99
  O-SPMXCA507 IC5 Device Connector to IC3 Battery Conn 4" / 100mm; 10 AWG £10.99
  O-SPMX50004S100H5 5000mAh 4S 14.8V 100C Smart LiPo Hardcase; IC5 £109.99
  O-GC4S5000-50E5 Li-Po Car 4S 14.8V 5000mAh 50C with EC5 £64.99
  O-FS-LCB02 Li-Po Battery Bag - Charge Bag 23x30cm £6.99
  O-DYN1400 Li-Po Charge Protection Bag, Small £17.99
[Scale] [ALL-METAL DRIVETRAIN]ALL-METAL DRIVETRAIN

ARRMA tough gears, diffs, outdrives and driveshafts.

 [FULL METAL STRONG]FULL METAL STRONG

Suspension arm end caps, pivot balls, steering plates.

 [SLIDING MOTOR MOUNT]SLIDING MOTOR MOUNT

For easy meshing and quick removal.

 [FEATURE_TITLE]MASSIVE ALLOY SHOCKS

24mm diameter bodies.

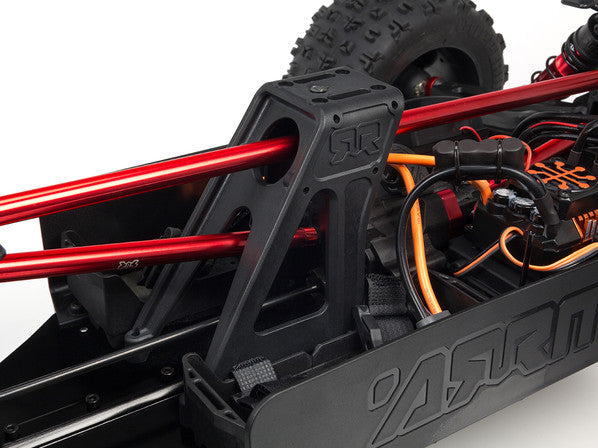

 [BODY PROTECTION TOWER]BODY PROTECTION TOWER

Interfaces with roll cage for enhanced body durability.

 [TRIPLE CENTRE BRACE SYSTEM]TRIPLE CENTRE BRACE SYSTEM

For maximum chassis durability.

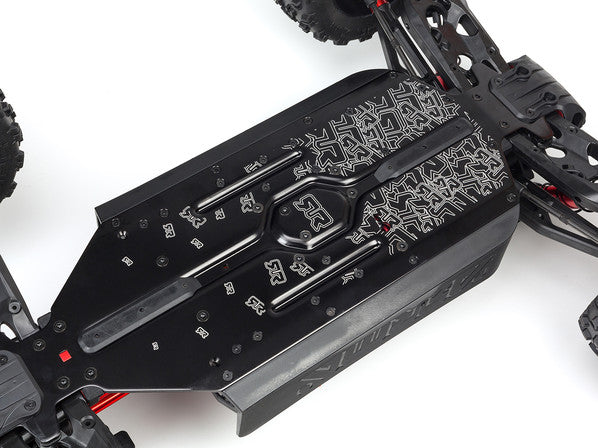

 [Chassis] [BEAUTIFULLY LASER ETCHED CHASSIS PLATE]BEAUTIFULLY LASER ETCHED CHASSIS PLATE

 [SPLIT-SPOKE WHEELS & MULTI-TERRAIN DBOOTS COPPERHEAD 2 SB TYRES]SPLIT-SPOKE WHEELS & MULTI-TERRAIN DBOOTS® COPPERHEAD 2 SB TYRES

 [STAND OUT FROM THE REST]STAND OUT FROM THE REST

Punchy from a distance, tonal detailing close-up.

 [INTEGRATED ELECTRONICS MODULE]INTEGRATED ELECTRONICS MODULE

Combined ESC, servo and receiver module.

 [SPEKTRUM Smart TECHNOLOGY INCLUDED]SPEKTRUM™ SMART TECHNOLOGY INCLUDED

 [8S POWER MODULE]8S POWER MODULE

 [AVC INCLUDED SPEKTRUM Active Vehicle Control system]AVC® INCLUDED SPEKTRUM™ ACTIVE VEHICLE CONTROL™ SYSTEM

For some help when things get loose.

 [OVERSIZED BATTERY TRAYS]OVERSIZED BATTERY TRAYS

Accommodate a wide range of battery sizes.

 [SPEKTRUM 2.4GHz DX2E ACTIVE RADIO & SR6100AT RECEIVER]SPEKTRUM 2.4GHz DX2E ACTIVE RADIO & SR6100AT RECEIVER

Ergonomic steering wheel for precise control
On-the-fly adjustable AVC® gain for personalized handling
Lightweight and ergonomic design for long bashing
2 channel radio system
2.4GHz technology built around DSMR technology
Full-range telemetry capabilities

 [SERVO]SERVO

Full-size 1/5th scale servo
Strong, metal gears used throughout
Waterproof and dustproof case
15 tooth output spline
Torque: 38kg-cm @6V
Speed: 0.20sec/60degree @6V
Dimensions: 2.36 x 1.14 x 2.17" (60 x 55 x 29mm)

 [ESC]SPEKTRUM™ FIRMA™ 160 AMP BRUSHLESS SMART ESC*3S, 4S and 6S are not recommended for the KRATON 8S BLX modelWaterproof and dustproof design
160A, 8S LiPo ready (3S*, 4S*, 6S* and 8S LiPo compatible)
Spektrum® Smart Technology
Fitted with reliable IC5™ connectors (EC5™ compatible)
Integrated fan for reduced heat during extreme running
High quality 10awg wires
Low voltage cut off and thermal overload protection
User programmable punch, brake, BEC, LVC sensitivity, reverse speed and motor timing settings

 [SPEKTRUM FIRMA 4685 1250Kv BRUSHLESS MOTOR]SPEKTRUM™ FIRMA™ 4685 1250Kv BRUSHLESS MOTOR

Beautifully etched aluminium can
4-pole construction for smooth and consistent power
6.5mm gold bullet connectors for reliable and efficient connection
Black anodised aluminium motor can for increased heat dissipation
Super strong 5mm shaft
Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

 [FEATURE_TITLE]SPEKTRUM® DASHBOARD™

The DX2E ACTIVE™ radio system can be equipped with the Spektrum Dashboard™
Smart ESC provides data on battery voltage, ESC temperature, Motor RPM, BEC Voltage and calculated speed. To view this data you will need:*Optional items that need to be purchased separately Download the free Spektrum Dashboard app for your Smart phone at your preferred app storeSpektrum Bluetooth module*
DX2E ACTIVE Smart Phone Mount*
Smart Phone with the free Spektrum Dashboard App*

 [WATERPROOF RECEIVER COMPARTMENT]WATERPROOF RECEIVER COMPARTMENT

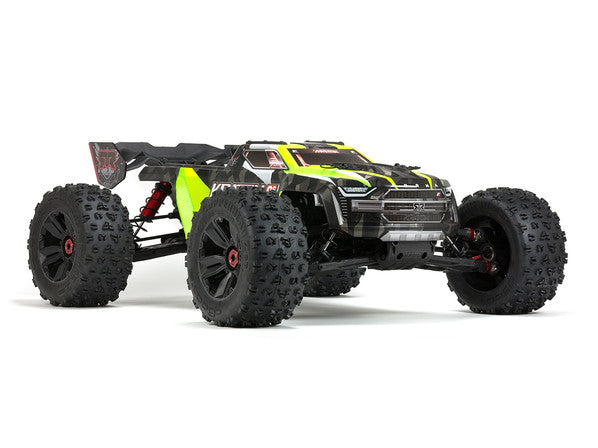

 [ARRMA KRATON 1/5 8S BLX 4WD Speed Monster Truck RTR]


Spec Data
Scale 1/5
Weight
11Kg
Height
266mm
Length
760mm
Width
602mm
