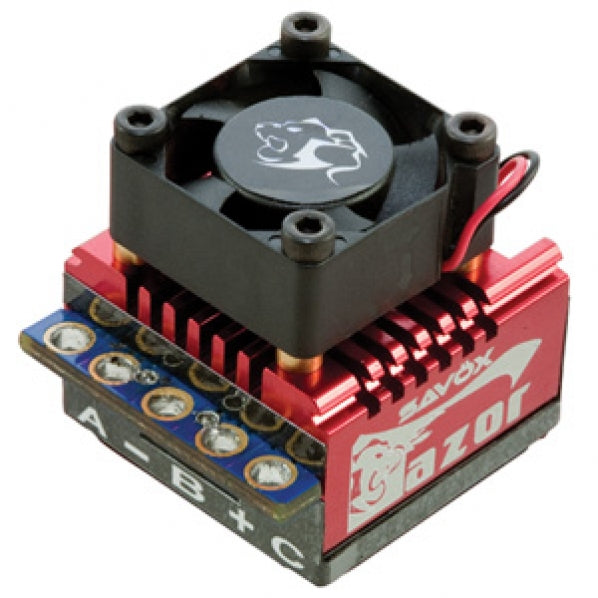

Savox Razor 160A Electric Speed Controller

The new Savox Razor competition sensored brushless speed controller gives you all the performance and adjustability you need at a great price.

Coming in an attractive anodised red, the alloy case is an integral part of the ESC to ensure the best possible heat dissipation. Also included is the additional fan for use in hotter conditions. With external solder tabs the high flex wire is easily changeable for different applications and the sensor wire locates discretely underneath the solder tabs for a neat and tidy install.

Spec Check:

• Classes: 1/12 & 1/10 scale
• Weight: 105g incl. wires & fan
• Modes: Fwd/Brk, Fwd/Brk/Rev, Fwd/Rev, Fwd/Paused/Rev
• Continuous current: 160A
• Peak current: 400A
• BEC: 6v/3A
• Input voltage: 7.4v-9.9v (2S Lipo)
• Motor limit: 540 size 4.5T sensored
• Footprint: 31.3x32.6mm
• Height: 27mm w/o fan, 37mm w/fan
• Programmable using programming box
• The compact programming box is included with the speed controller to make quick and easy set-up adjustment in just a few seconds.

Part No. SAV-RAZOR160
