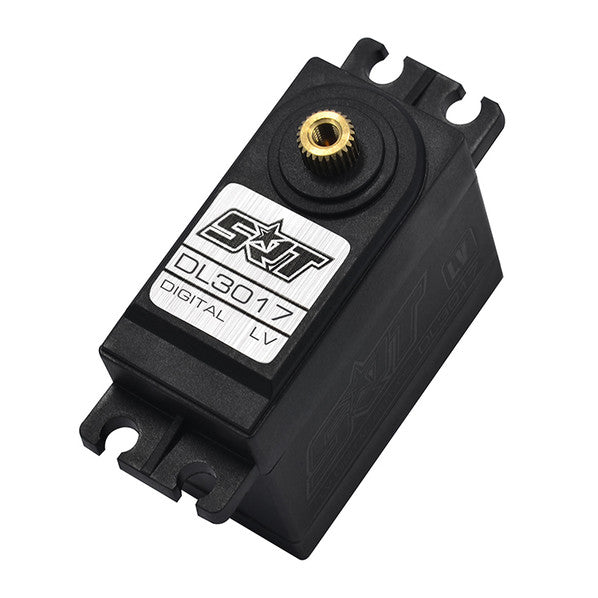

DL3017 - SRT LV Digital Servo - 17kg/0.15 Sec @6v

SRT DL3017 LV Digital Servo - 17kg/0.15 Sec @6v

The latest generation of high quality SRT servos provides you with the ultimate performance and reliability possible for many different applications.

Ideal for 1/10 and 1/8th on/off road applications
incredible efficiency and low power consumption
1-Year Limited Warranty

Product Specifications

Weight: 65.0g (2.82 oz)
Potentiometer drive: direct drive
Operating voltage: dc4.8-6.0v
Control system: pulse width control
Gear Type: Metal
Bearing: Dual
Operating speed (4.8v): 0.17 sec/60 degrees at no load
Operating speed (6.0v): 0.15 sec/60 degrees at no load
Stall torque (4.8v): 15.5kg.cm (215.2 oz/in)
Stall torque (6.0v): 17.0kg.cm (236.0 oz/in)
Type: Digital
Motor Type: Brushless
Gear Material: Titanium & Copper
Working frequency: 1520μs / 330hz
Operating temperature range: -10 to + 60 degree
Dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
Connector wire length: JR 250mm

Part No.: DL3017
