HW30101107 - Hobbywing XERUN V10 Black G2 Motor - 13.5T

Hobbywing XERUN V10 Black G2 Motor - 13.5T

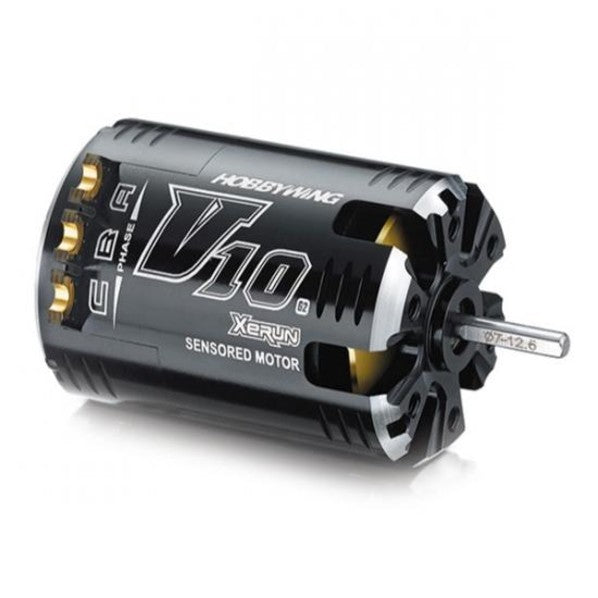

HOBBYWING XERUN V10 13.5T BLACK G2 MOTOR

The exterior design of V10 G2 is inspired by the wheel design of super sports car. The gap between the motor rotor and motor housing is extremely small due to precision machining and no copper sheet is needed avoids the motor failure caused by the wear of the copper sheet.

The motor housing is made from hard anodized aluminum, motor windings are wound from double insulated wire, the advanced rotor structure is designed to handle high temperature from the use of rare earth magnets and the imported bearings which are implemented are high precision metal caged for a minimum to zero friction which in turn will guarantee strength, outstanding performance, high durability and smoothness of the motor.

The built-in Hall sensor adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand. The output performance of this motor has an efficiency of up to 90%. In the same load condition, V10 G2 motor has the higher efficiency but lower temperature than the V10 motor.

HobbyWing XeRun V10 G2 Features:

Linear & Smooth Control
Solid Construction
Adjustable Mechanical Timing
High Efficiency
Re-buildable Case Design
BRCA, IFMAR, ROAR, JMRCA Certified

Spec Check:

Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
KV Rating: 3000
LiPo Cells: 2-3S
No-load Current(A): 1.8
Max. Power Output(W): 220
Amp at the Max. Power Output(A): 59
O.D.(mm): 36.0
Length (mm):52.5
Shaft Diameter (mm):3.175
Weight (g): 172

Part NO.: HW30101107
