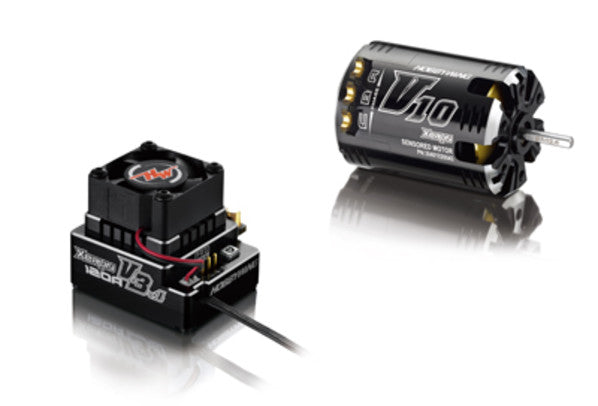

HW38020212 XERUN - 1/10 - Combo - V3J - 21.5T Motor

 XERUN - 1/10 - Combo - V3J - 21.5T Motor

Combo V3J
Advantages of XERUN-120A-V3.1 speedo

Aluminum bottom case improves the heat dissipation (The previous V3 speedo uses plastic bottom case);
Improved heat-sink with 1mm gap between the cooling fan allows more air flow to reduce the temperature of speedo;
Improved dust-proof design. Rubber rings are applied at the sensor port and the program port;
Aluminum screws of cooling fan look better and more professional;
Improved electronic switch has stronger current endurance to be more reliable;
New firmware allows driver to adjust the throttle neutral range, and solves the "turbo lost in high temperature" problem in the previous version firmware.


Specification (XERUN-120A-V3.1)

Current: Continuous: 120A, Burst: 760A
Input: * Note #1 4-9 cells NiMH/NiCd or 2-3S LiPo
Built-in BEC 6V@3A (linear mode)
Resistance 0.0003 Ohm
Motor Supported Sensored and sensorless brushless motor
Suitable Motor

With 2 Lipo or 4-6 NiMH 1/10 on-road: >=3.5T, 1/10 off-road: >=5.5T
With 3 Lipo or 7-9 NiMH 1/10 on-road: >=5.5T, 1/10 off-road: >=8.5T

Suitable Car: 1/10,1/12 all competitions
1/10,1/8 rock crawler
Cooling Fan: 5V
Size

37.5mm(L) * 31mm(W) * 29.5mm(H), excludes wire connectors
37.5mm(L) * 37mm(W) * 29.5mm(H), includes wire connectors

Weight: 93g


XERUN V10 Competition Motor Feature


Compliant with ROAR and IFMAR rules
Mechanical timing adjustable
200°C high temperature high purity copper windings maximizes conductivity and reliability
Super low resistance multi-layers outlet PCB (Printed Circuit Board)
Removable / replaceable rotor
High RPM precision bearings (Brand: NSK)
Powerful high temperature sintered NdFeb (Neodymium) magnets
High efficiency of energy conversion

Part No.: HW38020212
