K.30066 Ultima RB5

Featuring the latest racing specifications, the Ultima RB5 represents the ultimate in pure 2WD racing buggies. Designed without compromise from the ground up to build the best racing buggy chassis possible. Design writes new rules for the motor shaft, transmission (with 2nd gear reduction) center shaft and the motor positioning near the differential. A low center of gravity, restriction of rotating moment, high agility, and ease of control while producing sharp response, are all realized at the highest level. The adoption of the double slipper clutch proven to great effect in the Lazer ZX-5 allows precision friction setting for optimal traction. Sharp pick up response produces a linear throttle feel that gives you the confidence to take it to the limit in the heat of the race. Setting and maintenance-friendly features cannot be underrated, such as the adjustment of differential effect by simply inserting a wrench into the shaft’s lock ball and rotating the tire, and steering adjustment by changing a spacer to adjust Ackerman. Going to win 2WD buggy races is a whole lot easier with the sharpest machine around!

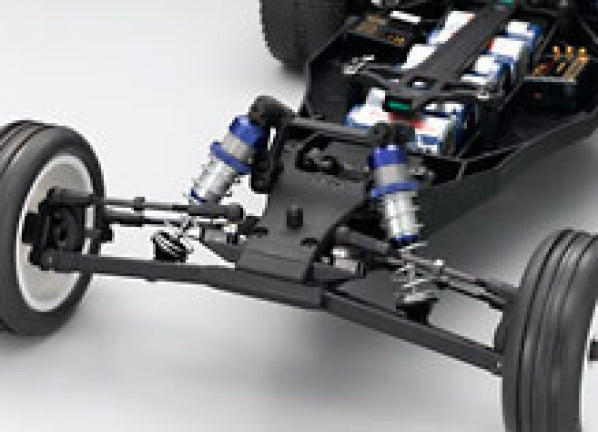

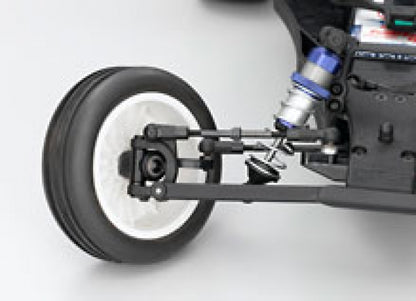

The combination of hardened bulkheads and pliable suspension mounts absorbs shocks from the ground but still produces rigidity through the steering. Also the wheel design features built-in ball bearings in the hubs that enable fast wheel changes.

The active suspension and the ultra smooth shafts in the 3-section structure of the oil shocks realize optimal ground tracing from low to high speeds. Cornering is superb as is grip during chassis roll to provide excellent control characteristics.

Revised positioning of the center shaft and transmission with motor positioned closer to the axle delivers improved movement. Teflon coating of all ball bearings also increases durability and dirt-resistance.

Specially designed body produces ideal aerodynamic effects through the speed range. Hollowed section in front screen results in effective downforce.

Equipped with double slipper clutch and specially designed clutch shoe. This combines with the high setting of the 2nd reduction ratio to produce sharp pick up and smooth traction transfer. The result is excellent control on many different surfaces.

Three modular sections of the chassis lets you get to what you need fast for easier maintenance and setting. Recommended for use with a 12T motor for the best results.

• Electric 2WD machine designed and built for victory with the latest racing technology.
• Newly developed transmission features smaller motor positioned closer to the axle.
• Newly designed double wishbone suspension achieves both rigidity and ease of maintenance.
• Newly developed front bulkhead increases scope of setting options.
• Double slipper clutch realizes sharp pick and high-efficiency traction control.
• Equipped with 3-section oil shocks with vibration-resistant shafts for continuously smooth damping over long periods.
• Front wheel section design features hubs with fitted bearings so wheel changes are fast and simple.
• All ball bearings used in the drive train are Teflon coated to maintain peak performance over longer periods.
• Front hub structure allows tread to be adjusted with use of optional front axle.
• Equipped with molded gear cover that realizes excellent durability, dirt-resistance and noise suppression.
• Optimal new type front springs adopted for oil shocks.
• Equipped with easy adjustment turnbuckle upper arms and tie-rods as standard.
• Sharp new design of body and large wing delivers maximum aerodynamic benefits.
• Equipped with newly developed maintenance-friendly wheels as standard.

Items Required To Run:

• 2-Channel, 1 Servo R/C System
• Motor
• Battery
• Tyres
• Foam Inserts
• Battery Charger

Chassis Technical Data:
Length: 380mm
Width: 249mm
Height: 140mm
Wheelbase: 270.5mm
Tread (F/R): 221mm／201mm
Tire(F/R): sold separately
Gear Ratio: 2.6：1(2nd)
Weight: 1,620g(approx.)
Motor: sold separately (12T motor recommended)

Part No. 30066
