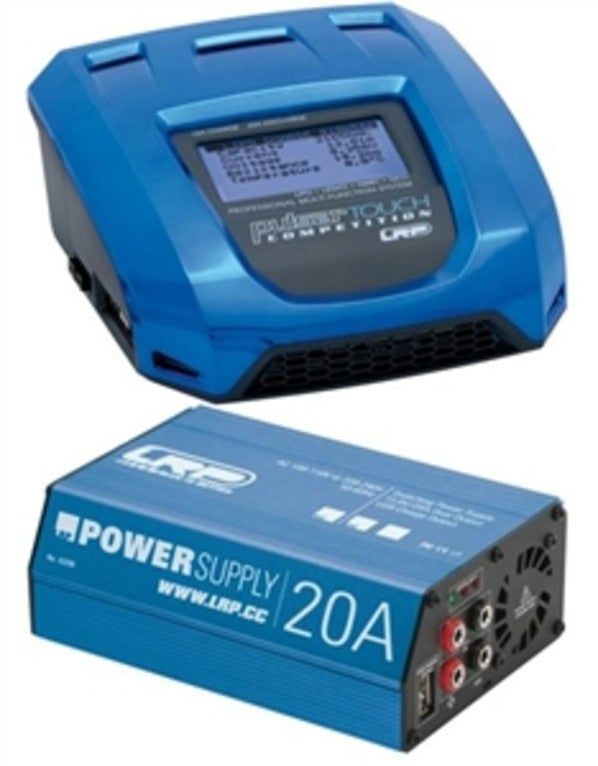

Pulsar Touch and 20amp power supply

An LRP Touch charger and power supply combo

With multiple prestigious R/C press awards and numerous WC titles, the PULSAR line is the first choice by the best drivers of the world! The PULSAR Touch Competition is the new generation to continue this of success story. This completely new developed charger shines with its revolutionary features, such as a special touch screen with graphic user interface and high-quality components.

This puts the 4th generation PULSAR charger in a class of its own!

Another special highlight is the integrated high performance LiPo/LiFePo balancer, that detects differences in the cells and automatically starts balancing, resulting in longer lifetime and even better performance of the battery.


CHARGE LiPo - LiFePo - NiMh - NiCd

• Adjustable fast charge from 0.1 to 12.0A
• 1-4 cells LiPo/LiFePo with automatic (LiPo/LiFePo) cut-off
• 1-8 cells (NiMH/NiCd) with adjustable Delta-Peak detection, linear or optional 5-step charge mode. (charging with variable current steps)
• Autostart-Timer for maximum comfort
• Storage Mode: The battery is charged/discharged automatically for longest cell lifetime

CYCLE LiPo - LiFePo - NiMh - NiCd

• Automatic Cycling Mode (Discharge - Charge - Discharge) for perfect conditioning of your batteries.

DISCHARGE LiPo - LiFePo - NiMh - NiCd

• Adjustable high-power discharge current (up to 20.0A) and cut-off voltage to perfectly match your batteries.

The following items are already included:
USB wire, output wire with alligator clamps, output wire with 4mm plug and balancing connector, Y-Hallsensor splitter including 3 sensor wires.


• Touch screen Graphic Display, blue backlit
• Integrated LiPo/LiFePo Balancer: The Balancer is specially developed for the use with LiPo and LiFePo batteries. It automatically detects cell condition for all 2- up to 4 cell batteries. If the difference between the cells is more than 5mV, the balancing starts automatically.
• Brushless motor sensor port: for sensor check and rpm measurement
• Receiver simulator port: for function check of speed controls and servos
• Fully Adjustable: Intuitive program structure with graphical user interface, allows precise adjustment of all parameters
• User Profile Memory: 5 factory pre-set profiles which can be customised, renamed and saved in memory
• USB connection (wire included): for data download to PC and firmware update
• Microprocessor controlled: Fully adjustable for perfect operation, maximum performance and highest safety
• Multi Protection System: 100% protection against output reverse polarity, short circuit, input voltage error and over charge.
• Voltage calibration for maximum accuracy
• DC Input 11-15V

LRP’s brand new power supply has now two output connectors for 12V devices. The output current is considerably higher: an impressive 20 Amperes at an output voltage of 13.8V make the new LRP Powersupply the perfect support for a tough day in the pit area.

Another top feature is the separate USB charging output. It is e.g. suited to charge MP3 players or mobile phones. The new LRP Powersupply Competition is the perfect device for all R/C applications. It is designed for an input voltage from 110V to 230V and can therefore be used worldwide. The compact dimensioned case is made of blue anodised aluminium.

•  20A / 13.8V output power - High power output to simultaneously use multiple chargers
• Dual output sockets - 2 individual output sockets for 4mm standard connectors
• USB charge output - 5V/1A USB charge output for electronic devices like mobile phones
• Compact and lightweight design - Only 154x102x53mm size
• One world – One power supply for 110V and 230V! - Adjustable input voltage selection
• Blue anodized aluminium housing
• Multi-protection-system

Part No. LRP41555set
