MCL1013 - Maclan MRR 9.5T Sensored Competition Motor B/L

Maclan MRR 9.5T Sensored Competition Motor

The concept of Maclan Racing MRR Series motor is to design a top performance motor in competition level with supreme quality standard. The goal is to build a 1/10 motor to suit the requirements of professional drivers and weekend club racers alike. It was designed to perform and compete out of box

The MRR 10.5, 13.5, 17.5, and 21.5 are designed for the most competitive applications in the RC car racing. With the latest hall sensor technology and highest grade copper wires, we make no compromise in the stock racing. The completely rebuildable MRR series will also allow you to rebuild the motor in just few minutes to always remain the competitiveness on the top.
DescriptionThe latest hall sensor technology that precisely deliver all the RPM and torque to you.
Short stator design for the lowest internal resistance and maximum performance (13.5/17.5/21.5)
Highest grade copper wires provide maximum conductivity with no compromise.
Heavy duty concave shape soldering tabs minimise the resistance and easy soldering work.

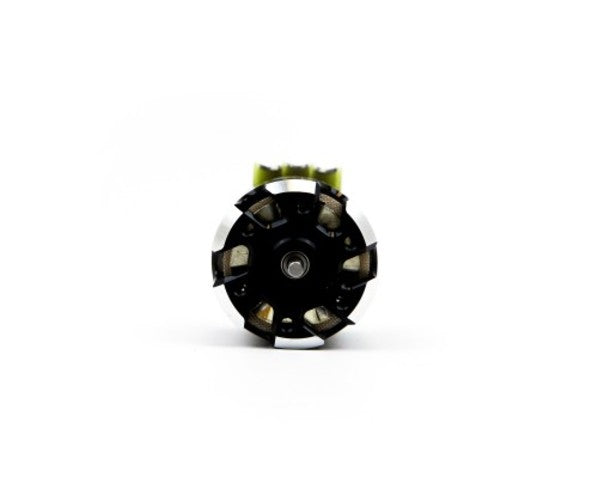

CNC 6061 T6 full aluminium case with maximum venting design for optimised durability and airflow cooling
Rebuild-able structure allows easy maintenance.
BRCA, EFRA and ROAR approved.

Modified Class: 3.5/4.5/5.5/6.5/7.5/8.5/9.5

Spec Class: 10.5/13.5/17.5/21.5/25.5

Case Length: 2.08in/53mm

Case Diameter: 1.42in/36mm

Shaft Extension: 0.552in/14mm

Shaft Size: 3.17mm

Weight: 6oz/170g ±2g

Poles: 2 Poles

Max Voltage: 2S Li-Po (All Turns)
3S Li-Po (10.5T ~25.5T)

Short Stack Design: 13.5T/17.5T/21.5T

Modified Class Default Rotor:
(3.5T~9.5T) MCL4077 12.5mm Torque Modified Rotor
(12.50x5.00x24.20mm w/ red color ring)

Stock Class Default Rotors:
(10.5T~21.5T) MCL4075 12.5mm Torque Spec Rotor
(12.50x7.25x24.20mm w/ red color ring)

Part No.: MCL1013
