ORI66083 Combo Neon 17 (motor +R10 Sport controller Deans)

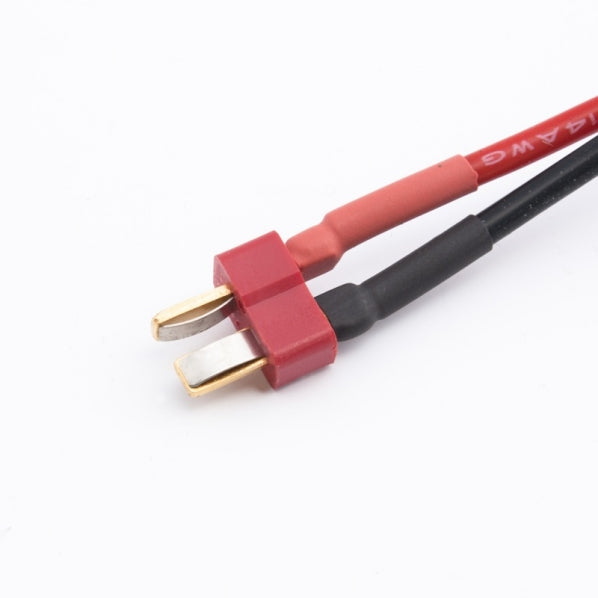

The 4-pole Neon brushless combos use our new generation Vortex R10 ESC. This new ESC offers ease of use, reliability and high performance. It can work with up to 3S LiPo and comes with Tamiya or Deans connectors (depending on the motor type). Several paramaters can be fine tuned by the user.

The Neon 4-pole brushless motor is a brand new design from our motor man Oscar Jansen. The best technical choices have been made to offer great functionality with contained costs. Thanks to this you can enjoy the performance of a 4-pole motor without breaking the bank.


Brushless Motor

Diameter w/o fins: 35.8mm
Efficiency: 90%
Poles:[4]  4Power: 220W
RPM-V: 3280kV
Shaft Diameter: 3.175mm
Shaft length: 15mm
Turns: 2.5Y (17T)T
Voltage: 4.5-12.6V


Electronic Speed Controller

Splash Proof: [Y]
Amps: 45A
Peak amps: 290A
Input Voltage: 7.4V-11.1V / 2S-3S LiPo
Function:  Forward/Brake
                  Forward/Brake/ReverseMotor Type: Sensorless 2-pole/4-pole
BEC: 6V, 3A
Max. kV @2S: 6000kV
Max. kV @3S: 4000kV


Dimensions and Weight

Length: 31.5mm
Width: 27.5mm
Height: 33mm
Weight: 74g

Part No. ORI66083
