PR Racing

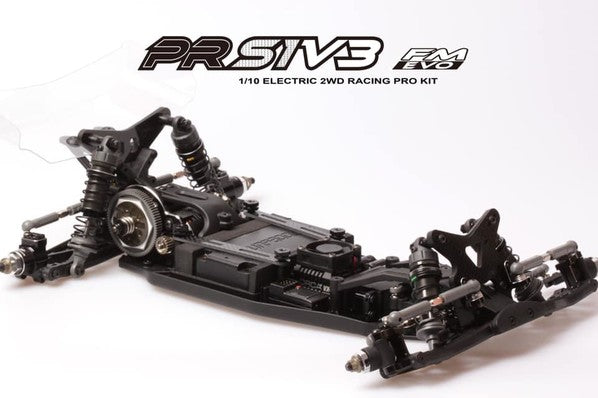

PR75400026 - PR S1 V3R EVO 1/10 Electric 2WD Buggy
PR75400026 - PR S1 V3R EVO 1/10 Electric 2WD Buggy
Regular price
£329.99 GBP
Regular price
Sale price
£329.99 GBP
Taxes included.
PR S1 V3R EVO 1/10 Electric 2WD Buggy
The S1 V3 platform continues to evolve with a whole host of improvements to create the V3R Evo. The main focus has been to make the car smoother and easier to drive on track, and this has been achieved with a revised 2.5mm thick -5mm length 7075 aluminium chassis . In addition new insert type hangers have been introduced, and in conjunction with the chassis design allow for
much lower rear roll centre, keeping the car much flatter on track with smoother rotation. New Ackerman geometry, and new CNC rear hubs with longer link positons also improve on track driveability. A new motor mount has been produced to lower the motor 2mm into a recess in the chassis, and makes a particular difference on today’s high grip tracks. In addition to all the
geometry and mechanical changes, the V3R Evo has been treated to a new body, designed to look sleek and offer more steering with it’s much larger forward mounted cabin.
2019 V3R Evo – Updates
New 7075 2.5mm Thick -5mm Length Chassis
New RR and RF Hangers with Pills
New CNC Aluminium Rear hubs
New Low Mount (-2mm) Motor Plate with Spur Protector
New Ackerman Plate
High Tensile Turnbuckles – Ultra Strong
New Sleek Body
New Grey Rod Ends and Shock Absorber Plastics
New Foam Battery Spacers
New ZZ Ball Bearings
Steel front Axles
Aluminium +5mm, 3 Degree Front Kick Up Block
In addition to all the updates the car is still packed with lots of items normally considered to be
Option parts:
CNC Alloy Servo Mounts
4 Degree Alloy Caster Blocks
Front Camber Plates
Vented Slipper Plates
Sway Bar Set
34 Tooth Alloy Idler Gear
Specifications
Length: 411mm
Width: 250mm
Height: 145mm
Wheelbase: 280mm
Front track: 248mm
Rear track: 248mm
Weight:1480-1510g
12.8mm big bore oil filled shocks
3 gear gearbox
Gear differential
Dual pad slipper
12mm Hex wheels
Item Required To Complete
Metric 1.5mm, 2.0mm hex tools
Metric 5.5mm, 7.0mm 8.0mm Nut Driver
2 Channel Surface Radio System (Minimum)
1/10 ESC, Motor & Pinion Gear
High Speed Servo
2S LiPo Shorty Battery & Compatible Lipo Charger
Polycarbonate Paint for Bodies
1/10 Buggy Tires, inserts and CA Glue
Part No.: PR75400026
