SK-100072-01 - SkyRC Charger 12A 200W DC Touch Screen - T6200

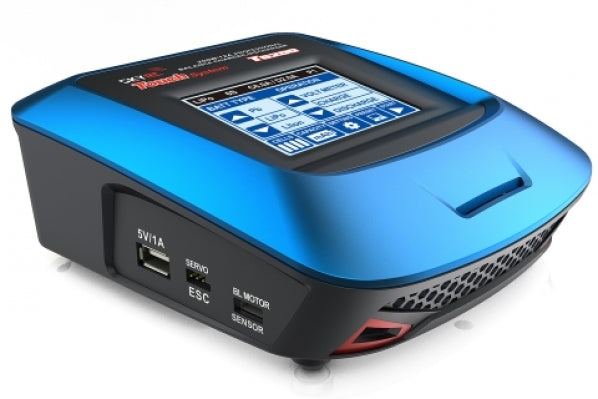

T6200 Charger 12A 200W DC Touch Screen


Professional Balance Charger/Discharger Battery Meter/Motor RPM Tester/Servo Tester

More touch, Easy control!

It is equipped with a 3.2" (320*240 dot) touch sensitive color LCD screen and user can have best using experience and interactivity

Tilt Stand Design

The tilt stand can support the chargers at different tilt angles so that the users can get best operational experience.

Efficient Ventilation Design

The ventilation holes are designed in the front and back panel for efficient air-flow which is vitally important for high voltage chargers.

Intuitive User Interface

The user interface is intuitive as all the operating instruction and changing status is displayed in the screen and the touch screen can register the users' input precisely so that the users can have a wonderful and comfortable "touch" experience.

Charging Status Monitor

When the charger is working, the users could check the information of charging capacity, cell voltage, charging time, external and internal temperature easily. What's more, it can also display the voltage in a graphic.

Terminal Voltage Control

The charger allows user to set the charge/discharge end voltage.

Maximum Safety Protection

Automatic Charging Current Limit
Capacity Limit
Temperature Threshold
Processing Time Limit

PC Control Software "Charge Master"

The free "Charge Master" software gives user unparalleled ability to operate the charger through the computer. The user can monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs, and can also control charging and update firmware from "Charge Master".

•  Input Voltage - DC 11-18V
•   Controls - Color LCD Touch Screen
•   Display Type 65.85*49.63mm graphic touch sensitive LCD 3.2"(320*240 dot) screen and four color theme
•   Display Backlight - White
•   PC Communications - USB port for PC Control & Firmware Upgrade
•   Case Material - Plastic
•   Cooling System - Built in, two 40*40*10mm fans
•   Case Size - 140*165*60mm
•   Weight - 560g
•   External Port - Temperature Probe Socket, DC Input, Balance Socket-XH, USB port for PC, Brushless Motor Sensor Port, Servo/ESC Port, USB 5V/1A
•   Delta Peak Detection
                                          - NiCd: 3-15mV/cell
                                          - NiMH: 3-15mV/cell
•   Charge Cutoff Temperature - 20-80°C (adjustable)
•   Charge Voltage - NiCd/NiMH: Delta peak detection
                               - LiPo: 4.18-4.3V/cell
                               - LiIon: 4.08-4.2V/cell
•   Balance Current - 200mA/cell
•   Reading Voltage Range - 0.3-5.0V/cell
•   Battery Types/Cells - NiCd/NiMH: 1-15cells
                                      - LiPo/LiIon/LiFe: 1-6cells
                                      - Pb: 2-20V
•   Battery Capacity Range - NiCd/NiMH: 100-20,000mAh
                                             - LiPo/LiIon/LiFe: 100-20,000mAh
                                             - Pb: 100-20,000mAh
•   Charge Current - 0.1-12.0A
•   Safety Timer - 1-720 minutes, Off
•   Charge Wattage - 200W
•   Discharge Current - 0.1-5.0A(±10%)
•   Discharge Cut-off Voltage - NiCd/NiMH: 0.1-1.1V/cell
                                                 - LiPo: 3.0-3.3V/cell
                                                 - LiIon: 2.9-3.2V/cell
•   Discharge Wattage 40W
•   Balance Cells - 6 cells
•   Memory - 5 different charge/discharge profiles
•   Charge Method - CC/CV for lithium types and lead (pb) batteries, Delta-peak Sensitivity for NiMH/NiCd.

Part No. SK-100072-01
