SK-100079 - Quattro Micro Charger AC/DC 4x1S Lipo

Quattro Micro Charger AC/DC 4x1S Lipo

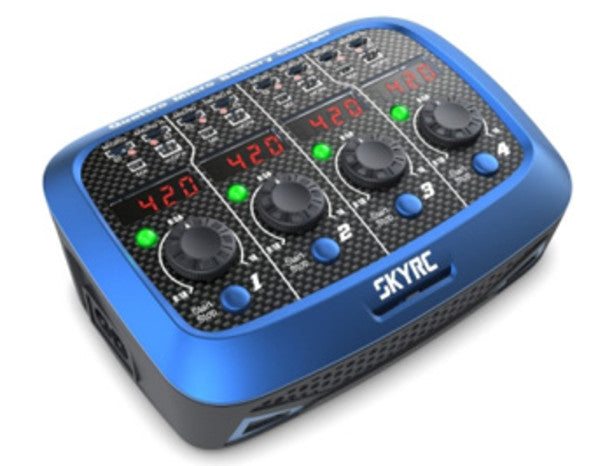

Quattro Micro Battery Charger employs the circuit that features four totally independent but identical power outputs which are powered 4W each. It is designed for charging single cell LiPo.Insert the lead to the right connector in each port,the charger will charge 4 batteries at the same time. And the charging current can be adjusted from 0.1-1A by dial,the charging capacity and cell voltage can be displayed in each 4-digital LED Indicators.

Worldwide operation: 110v-240v, worldwide safe operation, AC & DC convenient to use at home or at the track.

Specification
AC Input: 100-240V
DC Input: 11-15V
Charge circuit power: 4X4W±10%
Charge current range: 0.1-1.0A±10%
Battery type: 4X1 cell LiPo
Battery connector type: Micro/Micro Reverse/MX/mCPX
Working temperature: 0-50?
Net weight: 280g
Instruction Manual

Part no. SK-100079
