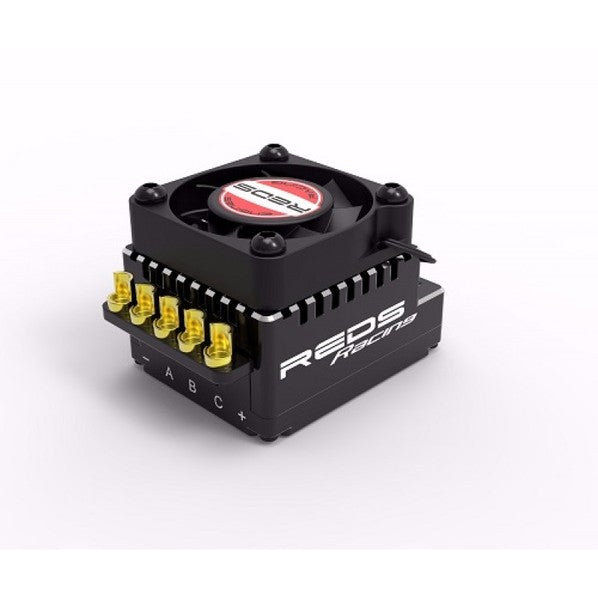

SPCO0001 - REDS TX120 Team Edition ESC

SPCO0001 - REDS TX120 Team Edition ESC

1/10 high performance speed controller for brushless motors.
Ultra-smooth and Precise Throttle and Braking Control.
High Grade and Low Resistance Components.
REDS TX120 speed controller is designed for 1/10th cars. It runs on 2S LiPo batteries and has a built-in BEC with 6.0V/7.4V voltage output. TX comes with external power capacitors to maintain a compact design, high reliable external power switch and high speed cooling fan.
The TX120 speed control defines capability and versatility unlike any other electronic speed controller on the market. With High Grade and Low Resistance Components utilized throughout, the TX takes 1:10th scale competition racing to a new level.
Power, control and reliability remain the foundation of this ESC. Built with a custom high-efficiency aluminum heatsink housing and full programming, the TX provides the tools for the win!
Billet Aluminum Housing
High Density Copper PCB's
High Grade and Low Resistance Components
30 mm High Speed Fan for Maximum Cooling
Sensor Plug for Precise Commutation with all Motors
Gold-plated Solder Posts for Easy Wire  Replacement
Easy radio calibration
Professional Programming with program box
Intelligent Drive and Brake Frequency System
Ultra-smooth and Precise Throttle and Braking Control
High Efficiency Timing Control Technology
PC Interface for Advanced Programming and Updating
TX TECHNOLOGY
Low resistance for high efficiency
Armed with features, the TX120 was designed for modified and stock racing.
The full aluminum billet housing and 30 mm low profile high speed fan maximize cooling for extreme racing conditions.
Thanks to high quality MOS FET's and a thicker PCB board the inner resistance of TX speed controller is extremely low for better efficiency.
Dual ESC power capacitor is based on the latests LiPo technology and features low impedence and even more power with linear throttle responce.
ESC TUNING
Professional programmable software
The firmware was developed in order to deliver better power options, especially for stock racing.
REDS TX guarantees a ultra-smooth and precise throttle and braking control thanks to the intelligent drive and brake frequency system.
The TX speed controller is fully programmable with the optional REDS RPB program box and REDS PC software.
The firmware can be updated by connecting the ESC with PC. REDS USB link software can be downloaded with the link below.
TECHNICAL SPECIFICATIONS
Classes: 1/10 scale
Continuous Current: 120A
Peak Current: 760A
BEC: 6v/3A
Input Voltage: 4-8 Cells MiMh/NiCd or 2S Lipo, 2S LiFe
Supported Motors: 540 size 2 pole sensored brushless
Motor Limit: Over 3.0T
Dimensions (L x W x H): 31 x 38 x 19mm
Weight: 45g

Part No. SPCO0001
