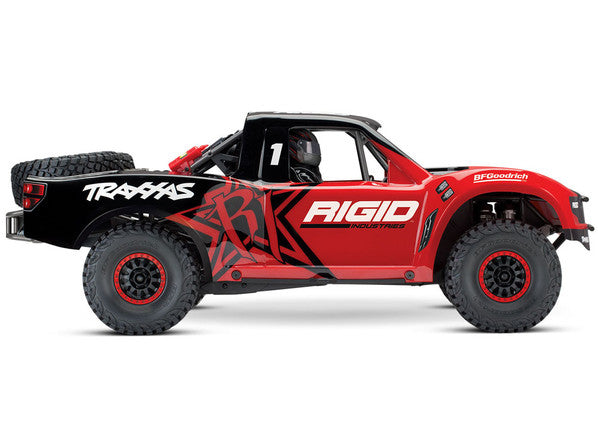

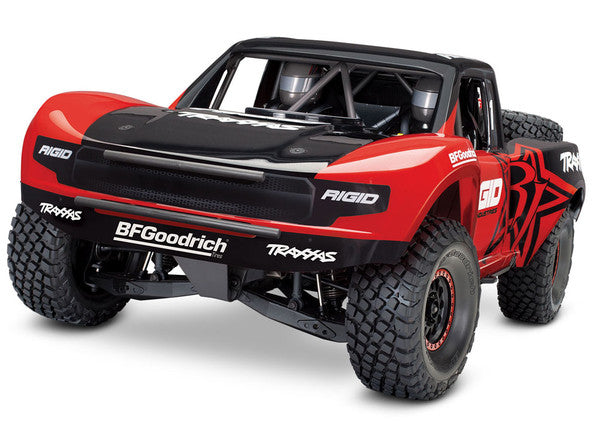

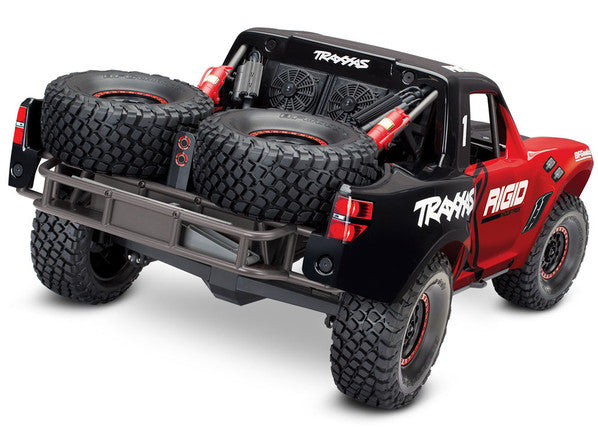

TRX85086-4 - Traxxas UDR Unlimited Desert Racer 4WD - Rigid

Traxxas UDR Unlimited Desert Racer 4WD - Rigid

Pro-Scale Performance

Pro-Scale is a new Traxxas innovation that captures true-scale realism and combines it with extreme 6s LiPo power and 50+ mph performance. The Traxxas Unlimited Desert Racer faithfully captures the look and feel of Trophy Trucks and Unlimited Trick Trucks as they charge hard across the desert at full speed.

Driving Realism

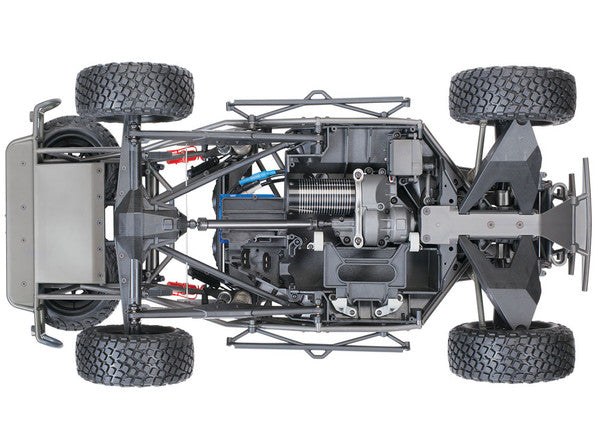

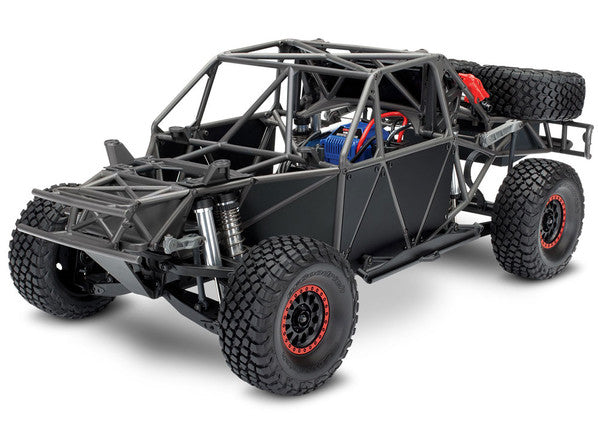

The Traxxas Unlimited Desert Racer is engineered on an authentic, true to scale 4-wheel drive desert race truck chassis. The 4-link solid rear axle design provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars to the 8 GTR shocks, Traxxas has accurately reproduced a true unlimited desert race chassis in both form and function.

6s Extreme Power

The 50+ mph Unlimited Desert Racer delivers its pro-level performance with brutal 6s power. The VXL-6s ESC combines massive power handling with high-tech telemetry features. An ultra-tough drivetrain harnesses the extreme power to make it easy to control and fun to drive.

Truck Specs:

Length: 27.32 inches (694mm)
Front Track: 13.57 inches (345mm)
Rear Track: 13.57 inches (345mm)
Ground Clearance: 2.27 inches (58mm)
Weight: 13.4lb (6.1kg)
Height: 10.29 inches (261mm)
Wheelbase: 16.53 inches (420mm)
Front Shock Length: 5.28 inches (134mm)
Front Threaded Shock Length: 5.28 inches (134mm)
Rear Shock Length: 6.3 inches (160mm)
Rear Threaded Shock Length: 5.55 inches (139mm)
Tires (pre-glued): 134mm x 57mm BFGoodrich® KR3 replicas
Wheels: dual diameter 40mm x 56/81mm
Speed Control: Velineon® VXL-6s
Motor (electric): 2200kV
Transmission: Direct-drive with Torque-Biasing Center Drive
Overall Drive Ratio: 17.89:1
Front Differential Type: Sealed, 4-gear
Rear Differential Type: Locked spool
Center Differential Type: Sealed, 4-gear (1M weight oil)
Drive System: Shaft driven 4WD
Steering: Dual bellcranks with ball bearings
Radio System: TQi™ 2-channel transmitter with 6533 TSM receiver
Servo: 2075X Metal Gear
Top Speed (stock gearing): 4s LiPo – 30+ mph, 6s LiPo – 50+ mph
Battery Compartment: 181mm x 46mm x 56mm

Feature List:

VXL-6s™ Waterproof Electronic Speed Control
Velineon® 2200kV Brushless Motor
Up to 50+ mph with Two 3s LiPo Batteries
Traxxas Stability Management® (TSM)
TQi™ 2.4GHz High Output Radio System
Large Pro-Scale™ Body with Highly Detailed Replica Parts
Innovative Battery Compartment:

Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
Opens from underneath without removing body
Fixed oversized battery strap locks batteries securely into place
Separate skid plate to protect batteries

Suspension

Provides scale looks and authentic off-road driving dynamics
Tough independent double-wishbone front suspension with captured rod ends
Triangulated 4-link rear suspension with solid rear axle (patent pending)
Tough composite trailing arms
Steel upper links with 3 optional positions for suspension tuning
Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars
Realistic and functional front and rear sway bars
Detailed functional limit straps on rear axle

Drivetrain

Steel CVDs (front) with 6mm stub axles
Steel straight axle (rear)
Oil-filled limited slip front differential
Locked steel spool (rear)
Heavy-duty splined front driveshaft
Fixed-length steel rear driveshaft

Transmission

All-steel gear direct drive transmission
Torque-Biasing Center Drive™
Removes as a single piece for easy maintenance
Fixed-pin gear mesh system



What You Need:

Batteries, Unlimited Desert Racer accepts a single 4s LiPo battery or dual 2s LiPo batteries or dual 3s LiPo batteries
Suitable Charger
AA Alkaline Batteries (x4)

Part No.: TRX85076-4
