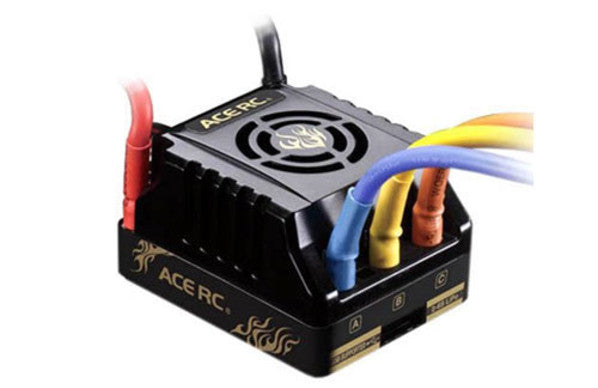

TT8081 BLC-150C Brushless ESC

• Compatible with all sensorless brushless motors and most of sensored brushless motors such as Novak, LRP and Feigao, etc.
• Excellent start-up, acceleration and linearity features.
• 3 running modes (Forward only with brake, Forward/Reverse with brake, Forward/Reverse immediately)
• 4 steps of maximum reverse force adjustment.
• Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
• 9 start modes (Also called “Punch”) from “very soft (Level 1)” to “very aggressive (Level 9)”.
• Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
• 8 steps of timing adjustment by software.
• Built-in switch mode BEC has a powerful output to supply all the electronic equipments.
• Easily program with only one button and compatible with pocket-sized Program Card.
• Firmware can be updated through an USB adapter (Optional equipment).
• Splash proof and dustproof.
• Stable and reliable.

Specification

• Output: Continuous current 150A, burst current 950A.
• Input: 6-18 cells NiMH/NiCd or 2-6 cells LiPo.
• BEC Output: 5.75V/3A (Switch mode built-in BEC).
• Resistance: 0.0002 Ohm.
• Motor Supported: Sensorless and sensored brushless motors
• Suitable Car: 1/8 Buggy / Truggy / Monster.
• Size: 58mm(L) * 46.5mm(W) * 35mm(H).
• Weight: 105g(Without wires)
