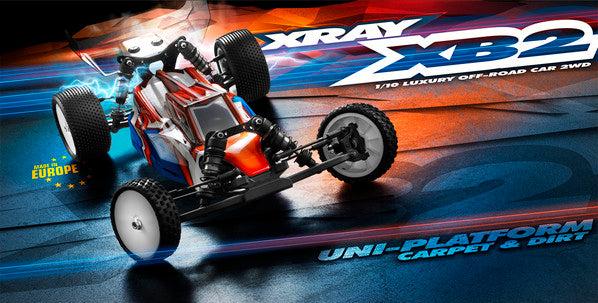

XR320000 XRAY XB2 - 2WD 1/10 ELECTRIC OFF-ROAD CAR - ASTRO & CARPET EDITION

XRay XB2 Features:

General

Brand new, ‘from ground up’ 2WD 1/10 electric racing buggy
Uni-Platform™ concept: Carpet Edition and Dirt Edition
Full compatibility and interchangeable parts
Designed for highest performance at all levels of racing
Engineered with attention to smallest details
Manufactured with legendary artistic craftsmanship from premium European materials
EFRA, ROAR, FEMCA spec compliant
Super easy to build, set up, maintain, and drive
Developed, designed, and styled by European Champion Martin Bayer and Dipl. Eng. Juraj Hudy, manufactured exclusively by XRAY in Europe in the world's most sophisticated RC manufacturing facility
Setting the new benchmark for premium quality, reliability and performance
Premium XRAY service & support

Uni-Platform™ Concept

Uni-Platform™ concept – two editions: Carpet Edition and Dirt Edition
Single platform, two editions for different traction conditions
Full compatibility and interchangeable parts
Carpet Edition: designed for medium to very-high traction conditions
Gear Differential
Mid-Motor Gear Box
Mid-Motor Plate
Graphite Front & Rear Shock Towers
Rear Roll Center Holder
Motor Upper Brace
Battery Strap
Medium and Hard Composite parts
Dirt Edition: designed for very-low, low, medium, and medium-high traction conditions
Ball Differential
Mid & Rear Gear Box
Mid & Rear Motor Plate
Composite Front & Rear Shock Towers
Rear Roll Center Holder
Motor Upper Brace
Battery Strap
Gear cover
Medium Composite parts

Chassis

Optimal chassis weight distribution & balance, specific to Carpet Edition or Dirt Edition
Carpet Edition – Gear Box and Motor Plate specifically designed to mount the motor in middle position with top shaft positioned lower
Dirt Edition – Gear Box and Motor Plate specifically designed to mount the motor in either middle position or rear position, with top shaft positioned higher. Gear box can be built with either a 3- or 4-gear configuration, allowing adjustment of the motor orientation from left to right side in either mid or rear positions.
Unique XRAY Multi-Flex™ technology for easy chassis flex adjustment
Swiss 7075 T6 hardcoated 2.0mm aluminum chassis: lightweight, strong, rigid
Electronics layout allows for moving the batteries frontwards/rearwards, as well as using standard or mid-size servos and either using saddle pack or short pack batteries
Composite side guards are an integral part of the XB2 Multi-Flex™ system
Custom-designed front lower chassis brace, available in medium and hard hardness for specific track conditions
Front protection bumper
Custom-designed upper deck, available in medium and hard hardness for specific track conditions
Swiss 7075 T6 aluminum motor plate, specific to Carpet Edition (mid-motor) or Dirt Edition (mid- or rear-motor)
Battery strap with foam spacer, specific to Carpet Edition or Dirt Edition
Lightweight, strong shock towers with multiple shock mounting positions, specific to Carpet Edition (graphite) or Dirt Edition (composite)
Pre-drilled chassis holes for additional weights for optimum car balancing; centerline holes are pre-drilled for easy balancing with the HUDY Chassis Balancing Tool #107880

Drivetrain & Differentials:

Conventional gear-driven 2WD off-road car
Unique gear box, specific to Carpet Edition or Dirt Edition
Carpet Edition – Gear Box and Motor Plate with lowered top shaft, forward-shifted motor for improved steering and handling on higher-traction surfaces
Dirt Edition – Gear Box with raised top shaft, motor placement closer to differential for improved rear grip in lower-traction conditions, left or right side motor mounting
Included rear differential is specific to Carpet Edition (gear differential with adjustable oil viscosity, 53T gear & internal satellite gears) or Dirt Edition (externally-adjustable ball differential with high-quality carbide thrustbearing and carbide balls)
25T graphite composite idler gears
20T super-lightweight Swiss 7075 T6 hardcoated aluminum top shaft
Robust slip-adjustable clutch with 81T main spur gear molded from exclusive secret blend of composite material
3-pad slipper clutch with ultra-efficient SLS material for more efficient & precise slip adjustment, and HUDY Spring Steel™ hardened outdrives for extra lifespan and reliability
Constant velocity drives (CVD) are manufactured from special HUDY Spring Steel™ for reduced weight and increased durability
Ultra-lightweight 12mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 and additionally black-coated have ultra-true hex clamping design which ensures solid mounting of the wheel
Full set of 24 high-speed, blue-sealed ball-bearings are used throughout the drivetrain to ensure maximum efficiency, degreased and oiled with AeroShell® Fluid 12 for maximum smoothness and long life

Suspension

Integrated Suspension Settings (I.S.S.) for quick & easy suspension geometry setting using eccentric bushings inserted into Swiss 7075 T6 aluminum suspension holders
Specially-designed suspension components manufactured from carefully formulated custom composite mixtures to ensure proper flex and durability
Race-perfected suspension geometry for superior performance and versatility in all racing conditions.
Suspension parts: arms, steering blocks, caster blocks and uprights are available in medium and hard hardness for specific track conditions
Lower composite arm mount with integrated 26° kick-up angle; optional aluminum and brass arm mounts available
Lightweight, rigid caster blocks can achieve different overall caster angles using included caster bushings
Tiny yet tough steering blocks comprised of composite steering blocks + graphite Ackermann extensions
Adjustable weight balance & wheelbase via included shims on outer suspension pins
Compact rear uprights with 0° toe and 6 different upper roll center positions
HUDY Spring Steel™ material for turnbuckles (featuring a tougher core) is used for front & rear upright linkages, and steering system.
Optionally available rear anti-roll bar set to stabilize the rear of the car; easily adjusted via linkages; laser-engraved markings for easy identification, available in different sizes for fine-tuning

Steering

Simple yet effective dual-arm steering system
Fully bearing-equipped with 8 high-speed ball-bearings for very precise steering
Easily-adjustable Ackermann by quickly changing the steering link mounting positions on the steering plate
Bump steer adjustment for more aggression
Ackermann adjustment via included shims or using various graphite extension plates on steering blocks

Shocks

Consistent, reliable, membrane-free shocks with bleed-screw shock cap design feature up-stop & downstop adjustment via shims (under shock collar, and under pistons, respectively)
Swiss 7075 T6 aluminum shock bodies, lower nut & bleeder shock caps
Super-precise molded Delrin™ pistons are offered with different holes & diameters for precise shock adjustment; for custom adjustment, a set of blank pistons (no holes) are also included
Shock rods are machined from a special steel material, precision hand-ground for maximum smooth operation and additionally hardened for increased lifespan
Premium shock springs designed specifically to complement the XB2 shocks; manually measured, selected and matched into pairs to guarantee equal length and damping characteristics; laser engraved for easy identification
Full line of linear -or- progressive shock springs available
Premium silicone oils laboratory tested and calibrated to ensure highest possible consistency and quality

Body, Wings, Wheels:

High-downforce, low-profile aerodynamic Lexan™ body designed to perfectly fit the XB2, flat cockpit & body sides to direct airflow for improved side stability, and rooftop flow channels
Tough composite side guards feature double-sided Velcro™ tape to seal the body perfectly to the chassis and seal against dirt.
Optional available ultra-lightweight body for very-high-traction tracks conditions
Stylish, effective Lexan™ rear wing designed to work perfectly with the XRAY XB2 body, supported on wing mounts by extra flat shims to better support and extend the life of the wing. Optionally available thicker 1.5mm (#323511) rear wing for higher traction & stability
Lexan™ front wing generates front downforce, mounted directly on the front shock tower
Specially designed 12mm hex hub wheels for high-competition racing; featuring reinforcement ribs to eliminate deformation and molded from very flexible material to retain shape even after impacts

Assembly, Set-up & Support:

Premium 3D full-color Instruction Manual & supplementary sheets
To fully understand the set-up possibilities we recommend the legendary HUDY Set-up Book which is loaded with over 40 pages of high-quality pictures and easy-to-read RC car set-up explanations
Exclusive Virtual Online Setup Sheet database with thousands of set-up sheets for race tracks around the world
Premium, unmatched XRAY online support

Adjustment Possibilities:

Fully-adjustable front and rear suspension geometry: caster, camber, rear toe, kick-up, anti-squat, ride height, downstops, track-width, roll center, wheelbase, Multi-Flex™
Adjustable rear differential action
Adjustable slipper clutch
Adjustable HUDY Sprint Steel™ turnbuckles (steering, front & rear upper links)
Multiple upper & lower shock mounting locations at front & rear
Adjustable Ackermann and bumpsteer
Optional adjustable rear anti-roll bar
Chassis pre-drilled holes for weight balance adjustment
Part No.  XR320000
